MAX4080SASA+T
| Do pobrania | Download |
|---|---|
| Main description | SP Amp Current Sense Amp Single 76V Automotive 8-Pin SOIC N T/R |

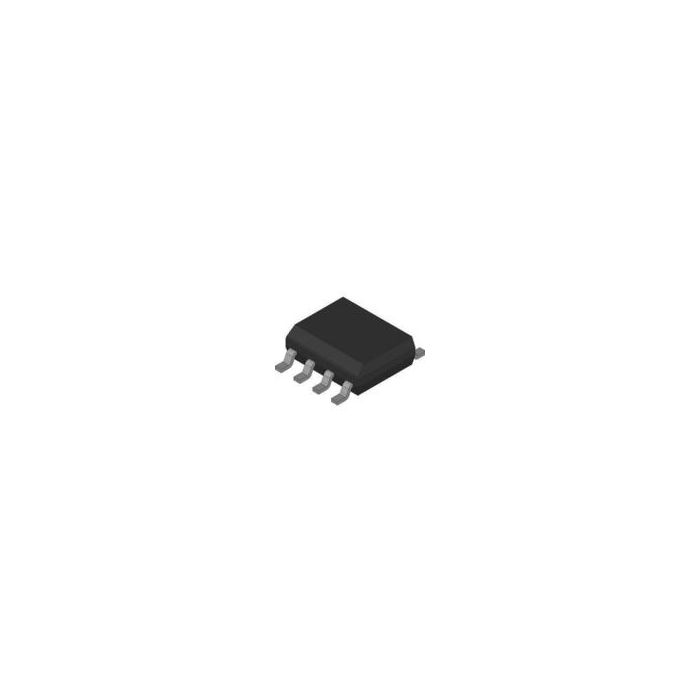

SP Amp Current Sense Amp Single 76V Automotive 8-Pin SOIC N T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 326
- Inventory 4
- PCNs 8
- MaskPart MAX4080SASA+%
- IntroductionDate Oct 01, 2002
Parametry
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) 5(Typ)@76V
- Maximum Input Offset Voltage (mV) 0.6@48V
- Maximum Input Resistance (MOhm) 0.25(Typ)@76V
- Maximum Power Dissipation (mW) 471
- Maximum Quiescent Current (mA) 0.075(Typ)@76V
- Maximum Single Supply Voltage (V) 76
- Maximum Supply Current (mA) N/A
- Maximum Supply Voltage Range (V) >=50
- Maximum Voltage Gain (dB) 35.56(Typ)
- Maximum Voltage Gain Range (dB) 35 to 50
- Minimum CMRR (dB) 100
- Minimum CMRR Range (dB) 95 to 105
- Minimum DC Continuous Isolation Voltage (V) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum PSRR (dB) 100
- Minimum Single Supply Voltage (V) 4.5
- Number of Channels per Chip 1
- Number of Elements per Chip 1
- Output Type N/A
- Power Supply Type Single
- Rail to Rail N/A
- Supplier Temperature Grade Automotive
- Type Current Sense Amplifier
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Current (mA) 20(Max)
- Typical Single Supply Voltage (V) 5|9|12|15|18|24|28
