MAX4062EUB+
| Do pobrania | Download |
|---|---|
| Main description | Audio Amp Microphone 1-CH Mono Class-AB 10-Pin uMAX |

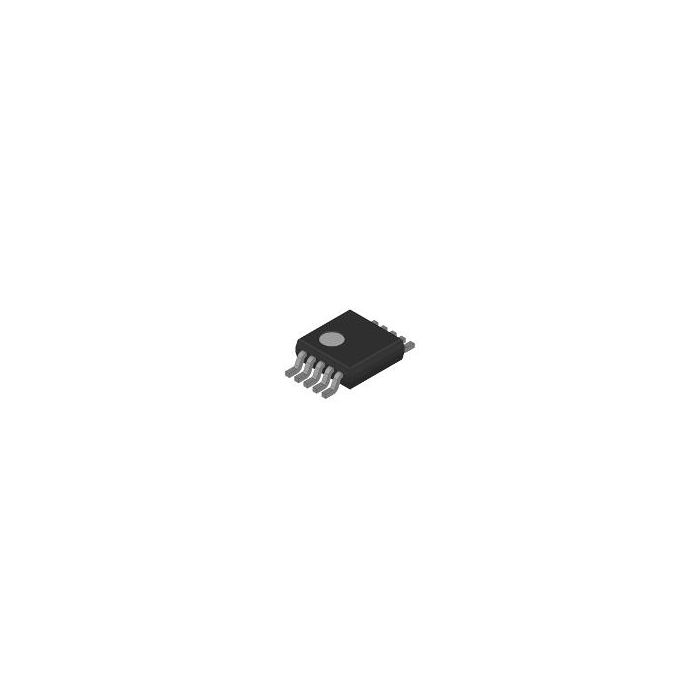

Audio Amp Microphone 1-CH Mono Class-AB 10-Pin uMAX
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 3
- Inventory 4
- PCNs 8
- GIDEP-Alerts 1
- MaskPart MAX4062EUB+%
- IntroductionDate Apr 01, 2002
Parametry
- Amplifier Type Class-AB
- Function Microphone
- Input Signal Type Differential
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) 0.1(Typ)
- Maximum Load Resistance (Ohm) 100000
- Maximum Output Current (mA) N/A
- Maximum Output Power x Channels @ Load (W) N/A
- Maximum Power Dissipation (mW) 444
- Maximum Quiescent Current (mA) N/A
- Maximum Single Supply Voltage (V) 5.5
- Maximum Supply Current (mA) 1.2@3V@-40C to 85C
- Minimum CMRR (dB) 70(Typ)
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2.4
- Output Signal Type Single
- Output Type 1-Channel Mono
- Power Supply Type Single
- Rail to Rail Rail to Rail Output
- Supplier Temperature Grade Extended
- Total Harmonic Distortion Noise 0.04%@100000Ohm
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Power x Channels @ Load (W) N/A
- Typical PSRR (dB) 89
- Typical Quiescent Current (mA) N/A
- Typical Single Supply Voltage (V) 3|5
- Typical Supply Current (mA) 0.75@3V
- Typical Voltage Gain (dB) 20
