MAX232EEWE+
| Do pobrania | Download |
|---|---|
| Main description | Dual Transmitter/Receiver RS-232 16-Pin SOIC W |

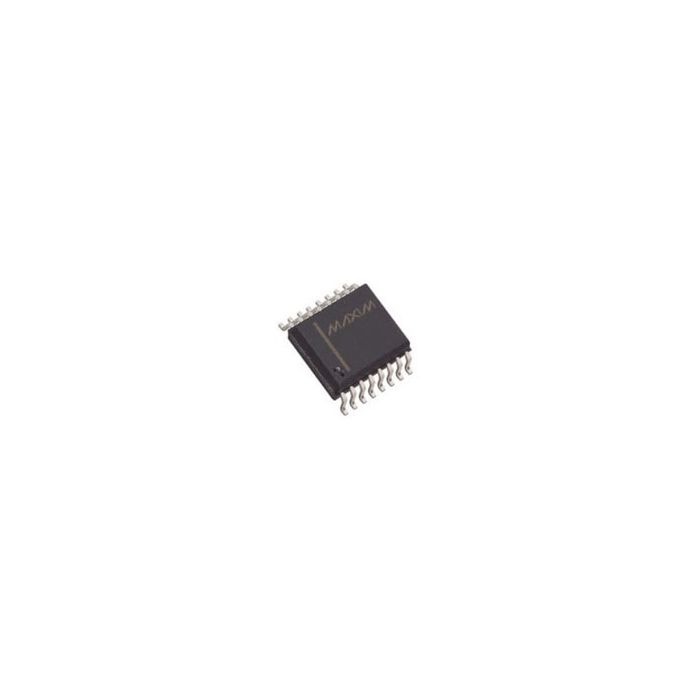

Dual Transmitter/Receiver RS-232 16-Pin SOIC W
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 1699
- Inventory 3
- PCNs 9
- GIDEP-Alerts 1
- MaskPart MAX232EEWE+%
- IntroductionDate May 01, 1996
Parametry
- Charge Pump Yes
- Data Rate 120Kbps(Min)
- Data Transmission Topology Point-to-Point
- Driving Mode No
- External Capacitor Capacitance (uF) 1
- Fail Safe N/A
- Function Line Transceiver
- Input Logic Level TTL|CMOS
- Interface Standards EIA/TIA-232-E|RS-232|V.28
- Maximum Dual Supply Voltage (V) N/R
- Maximum Single Supply Voltage (V) 5.5
- Maximum Storage Temperature (°C) 165
- Maximum Supply Current (mA) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 4.5
- Minimum Storage Temperature (°C) -65
- Number of Drivers per Line 1
- Number of External Capacitors 4
- Number of Receiver Enables 0
- Number of Receivers 2
- Number of Receivers per Line 1
- Number of Transceivers 1
- Number of Transmitter Enables 0
- Number of Transmitters 2
- Output Logic Level TTL|CMOS
- Power Down Mode N/A
- Power Supply Type Single
- Receiver Communication Type RS-232
- Receiver Signal Type Single-Ended
- Supplier Temperature Grade Extended
- Transmitter Communication Type RS-232
- Transmitter Signal Type Single-Ended
- Typical Dual Supply Voltage (V) N/R
- Typical Shutdown Current (uA) N/A
- Typical Single Supply Voltage (V) 5
