MAX190AENG-T
| Do pobrania | Download |
|---|---|
| Main description | 1-Channel Single ADC SAR 76ksps 12-bit Parallel/Serial 24-Pin PDIP N T/R |

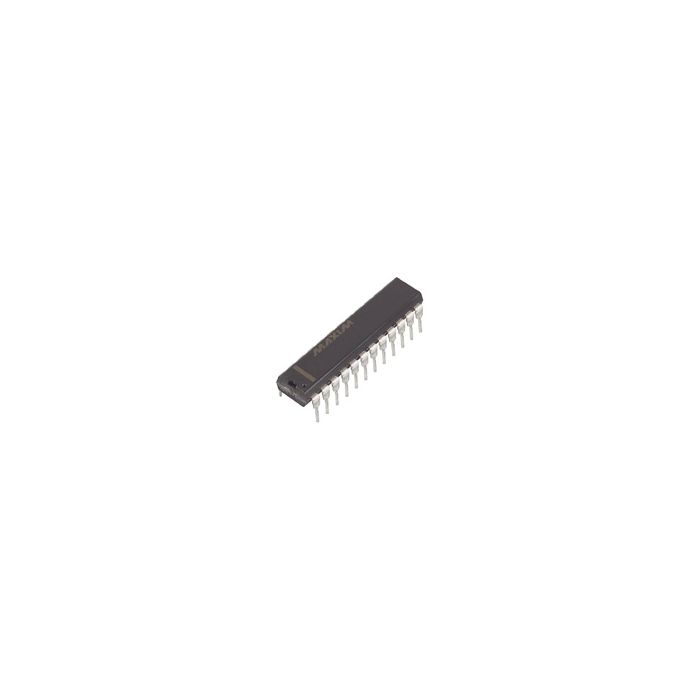

1-Channel Single ADC SAR 76ksps 12-bit Parallel/Serial 24-Pin PDIP N T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSNo (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 85
- Inventory 3*
- PCNs 7
- MaskPart MAX190AENG%
- IntroductionDate Apr 01, 1993
Parametry
- Architecture SAR
- Converter Type General Purpose
- Differential Input Yes
- Differential Nonlinearity ±1LSB
- Digital Interface Type Parallel|Serial (SPI, QSPI, Microwire)
- Digital Supply Support No
- Full Scale Error ±2LSB
- Input Signal Type Single-Ended|Pseudo-Differential
- Input Type Voltage
- Input Voltage 5V
- Integral Nonlinearity Error ±0.5LSB
- Maximum Dual Supply Voltage (V) N/R
- Maximum Negative Supply Voltage (V) N/A
- Maximum Positive Supply Voltage (V) 5.25
- Maximum Power Dissipation (mW) 1067
- Maximum Single Supply Voltage (V) 5.25
- Minimum Dual Supply Voltage (V) N/R
- Minimum Negative Supply Voltage (V) N/A
- Minimum Positive Supply Voltage (V) 4.75
- Minimum Single Supply Voltage (V) 4.75
- No Missing Codes (bit) N/A
- Number of ADCs 1
- Number of Input Channels 1
- Polarity of Input Voltage Unipolar
- Resolution 12bit
- Sample and Hold Yes
- Sampling Rate 76ksps
- Signal to Noise Ratio N/A
- Single-Ended Input Yes
- Supplier Temperature Grade Extended
- Typical Dual Supply Voltage (V) N/R
- Typical Power Dissipation (mW) 15
- Typical Single Supply Voltage (V) 5
- Voltage Reference Internal|External
- Voltage Supply Source Single
