MAX1126EGK+T
| Do pobrania | Download |
|---|---|

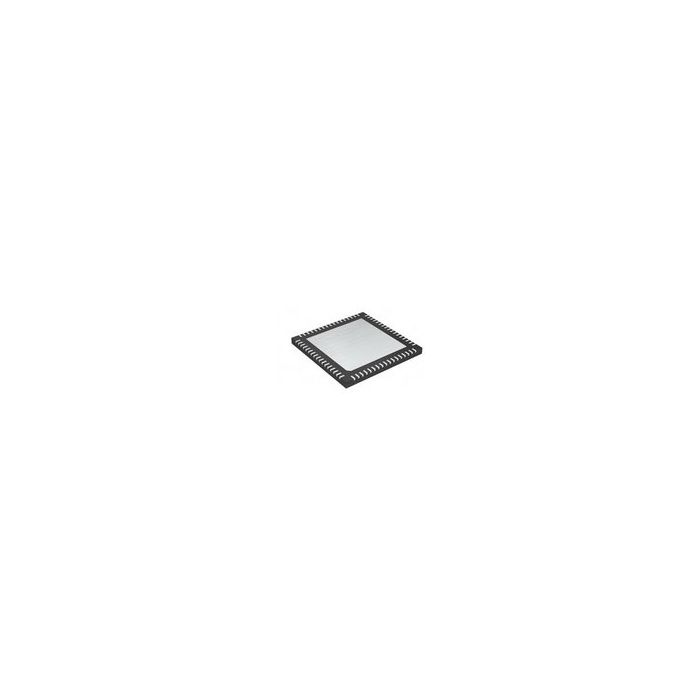

| Main description | 4-Channel Quad ADC Pipelined 40Msps 12-bit Serial 68-Pin QFN EP T/R |
4-Channel Quad ADC Pipelined 40Msps 12-bit Serial 68-Pin QFN EP T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 45
- Inventory 1*
- PCNs 7
- MaskPart MAX1126EGK+%
- IntroductionDate Jan 01, 2004
Parametry
- Architecture Pipelined
- Converter Type General Purpose
- Differential Input Yes
- Differential Nonlinearity ±0.25LSB(Typ)
- Digital Interface Type Serial|LVDS
- Digital Supply Support No
- Full Scale Error -1.5/2.5%FSR
- Input Signal Type Differential
- Input Type Voltage
- Input Voltage 1.4Vp-p
- Integral Nonlinearity Error ±0.4LSB(Typ)
- Maximum Dual Supply Voltage (V) N/R
- Maximum Power Dissipation (mW) 616
- Maximum Single Supply Voltage (V) 1.9
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 1.7
- No Missing Codes (bit) N/A
- Number of ADCs 4
- Number of Input Channels 4
- Polarity of Input Voltage N/A
- Resolution 12bit
- Sample and Hold Yes
- Sampling Rate 40Msps
- Signal to Noise Ratio 69.9dB(Typ)
- Single-Ended Input No
- Supplier Temperature Grade Extended
- Typical Dual Supply Voltage (V) N/R
- Typical Power Dissipation (mW) 535
- Typical Single Supply Voltage (V) 1.8
- Voltage Reference Internal|External
- Voltage Supply Source Single
