M25PE80-VMN6TPB
| Do pobrania | Download |
|---|---|

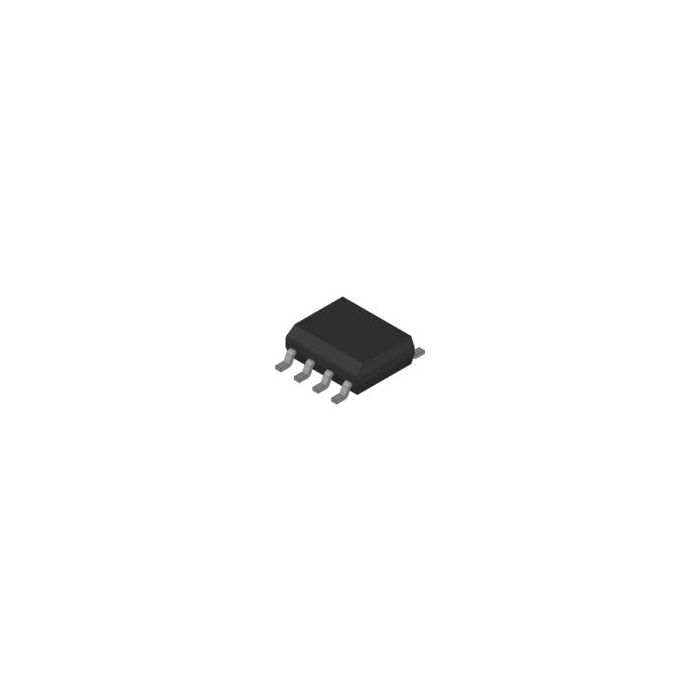

| Main description | NOR Flash Serial-SPI 3.3V 8M-bit 1M x 8 8ns 8-Pin SOIC N T/R |
NOR Flash Serial-SPI 3.3V 8M-bit 1M x 8 8ns 8-Pin SOIC N T/R
Informacje podstawowe
- ProducentMicron Technology
- Automotive No
Informacje dodatkowe
- Crosses 109
- PCNs 9
- MaskPart M25PE80VMN6%PB
Parametry
- Address Bus Width (bit) 1
- Architecture Sectored
- Bank Size N/R
- Block Organization Symmetrical
- Boot Block No
- Cell Type NOR
- Command Compatible No
- Density (bit) 8M
- Density in Bits (bit) 8388608
- ECC Support No
- Erase Suspend/Resume Modes Support No
- Interface Type Serial-SPI
- Location of Boot Block N/R
- MMC Version N/R
- Maximum Access Time (ns) 8
- Maximum Erase Time (s) 60/Chip
- Maximum Page Access Time (ns) N/R
- Maximum Programming Time (ms) 5/Page
- Maximum Storage Temperature (°C) 150
- Minimum Endurance (Cycles) 100000
- Minimum Storage Temperature (°C) -65
- Number of Banks N/A
- Number of Bits per Word (bit) 8
- Number of Words 1M
- OE Access Time (ns) N/A
- Page Read Current (mA) N/R
- Page Size N/A
- Program Current (mA) 15
- Programmability Yes
- Programming Voltage (V) 2.7 to 3.6
- Sector Size 4Kbyte x 256
- Simultaneous Read/Write Support No
- Supplier Temperature Grade Industrial
- Support of Common Flash Interface No
- Support of Page Mode No
- Timing Type Synchronous
