M25P16-VMN6TP/4A
| Do pobrania | Download |
|---|---|
| Main description | NOR Flash Serial-SPI 3.3V 16M-bit 2M x 8 15ns 8-Pin SOIC N T/R |

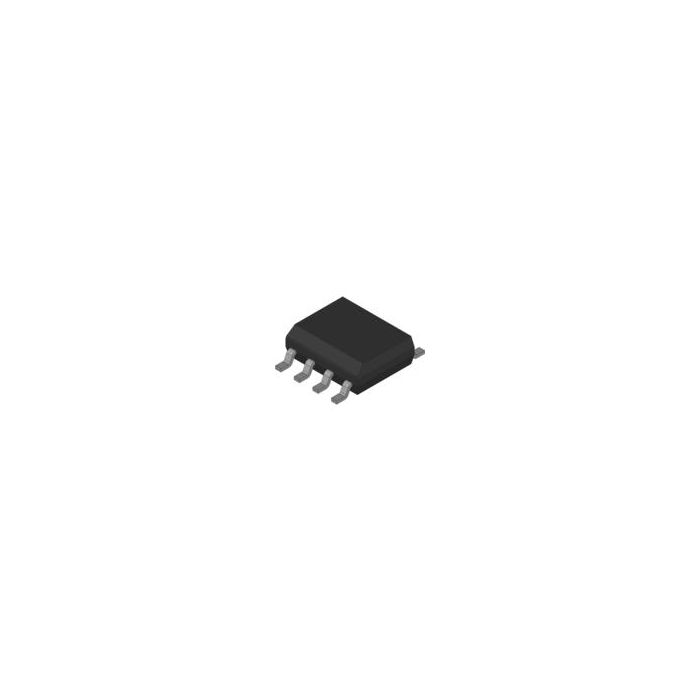

NOR Flash Serial-SPI 3.3V 16M-bit 2M x 8 15ns 8-Pin SOIC N T/R
Informacje podstawowe
- ProducentMicron Technology
- EURoHSYes (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 107
- PCNs 10
- MaskPart M25P16VMN6TP4A%
- IntroductionDate Mar 23, 1998
Parametry
- Address Bus Width (bit) 1
- Architecture Sectored
- Bank Size N/R
- Block Organization Symmetrical
- Boot Block No
- Cell Type NOR
- Command Compatible No
- Density (bit) 16M
- Density in Bits (bit) 16777216
- ECC Support No
- Erase Suspend/Resume Modes Support No
- Interface Type Serial-SPI
- Location of Boot Block N/R
- Maximum Access Time (ns) 15
- Maximum Erase Time (s) 40/Chip
- Maximum Page Access Time (ns) N/R
- Maximum Programming Time (ms) 5/Page
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of Banks N/A
- Number of Bits per Word (bit) 8
- Number of Words 2M
- OE Access Time (ns) N/A
- Page Read Current (mA) N/R
- Page Size 256byte
- Program Current (mA) 15
- Programmability Yes
- Programming Voltage (V) 2.7 to 3.6
- Sector Size 64Kbyte x 32
- Simultaneous Read/Write Support No
- Supplier Temperature Grade Industrial
- Support of Common Flash Interface No
- Support of Page Mode No
- Timing Type Synchronous
