M25P128-VMF6PB
| Do pobrania | Download |
|---|---|

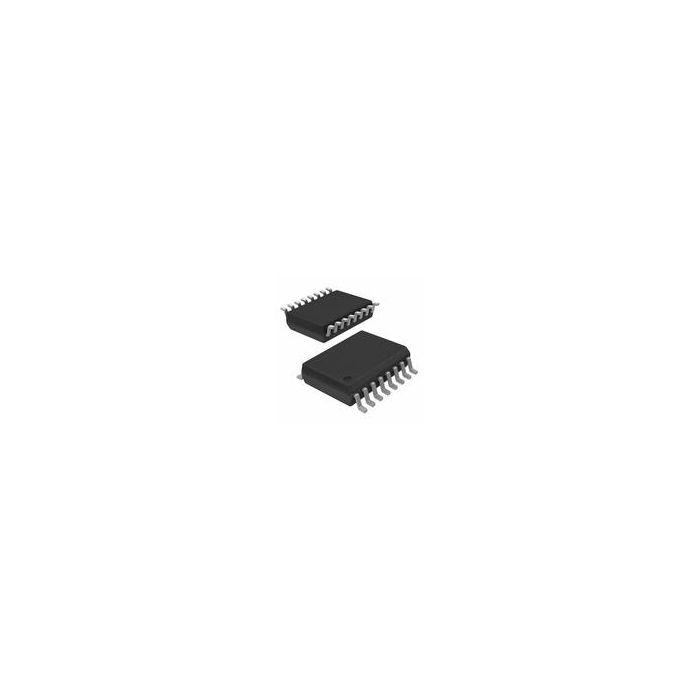

| Main description | NOR Flash Serial-SPI 3.3V 128M-bit 16M x 8 8ns 16-Pin SOIC W Tube |
NOR Flash Serial-SPI 3.3V 128M-bit 16M x 8 8ns 16-Pin SOIC W Tube
Informacje podstawowe
- ProducentMicron Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 132
- PCNs 16
- MaskPart M25P128VMF6PB%
- IntroductionDate Jan 20, 2006
Parametry
- Address Bus Width (bit) 1
- Architecture Sectored
- Bank Size N/R
- Block Organization Symmetrical
- Boot Block No
- Cell Type NOR
- Command Compatible No
- Density (bit) 128M
- Density in Bits (bit) 134217728
- ECC Support No
- Erase Suspend/Resume Modes Support No
- Interface Type Serial-SPI
- Location of Boot Block N/R
- Maximum Access Time (ns) 8
- Maximum Erase Time (s) 250/Chip
- Maximum Page Access Time (ns) N/R
- Maximum Programming Time (ms) 5/Page
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of Banks N/A
- Number of Bits per Word (bit) 8
- Number of Words 16M
- OE Access Time (ns) N/A
- Page Read Current (mA) N/R
- Page Size N/A
- Program Current (mA) 20
- Programmability Yes
- Programming Voltage (V) 2.7 to 3.6|8.5 to 9.5
- Sector Size 256Kbyte x 64
- Simultaneous Read/Write Support No
- Supplier Temperature Grade Industrial
- Support of Common Flash Interface No
- Support of Page Mode No
- Timing Type Synchronous
