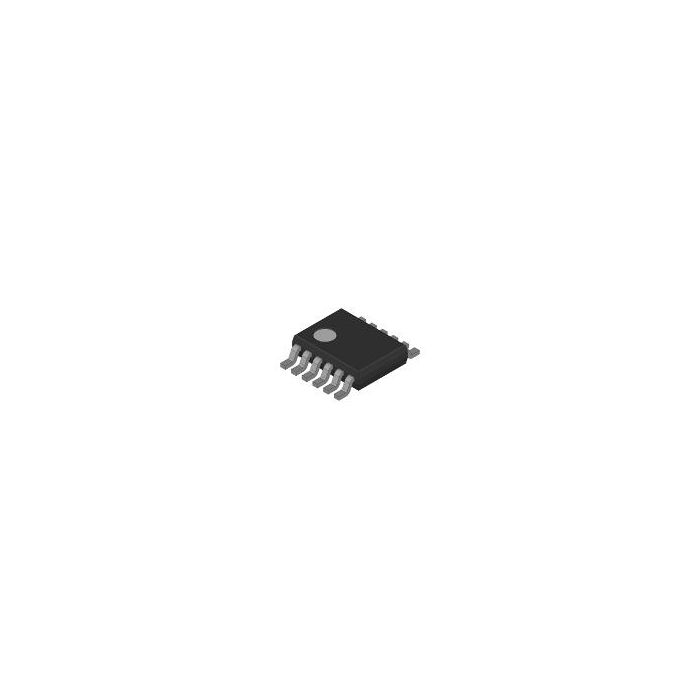

LTC6957IMS-2#PBF
| Do pobrania | Download |
|---|---|
| Main description | Clock Fanout Buffer 2-OUT 1-IN 1:2 12-Pin MSOP Tube |
Clock Fanout Buffer 2-OUT 1-IN 1:2 12-Pin MSOP Tube
Informacje podstawowe
- ProducentAnalog Devices
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 275
- Inventory 2
- PCNs 9
- MaskPart LTC6957IMS2#PBF%
Parametry
- Absolute Propagation Delay Time (ns) 4.4
- Configuration N/R
- Fanout 1:2
- Input Logic Level N/A
- Input Signal Type Differential
- Maximum Data Rate (Gbps) N/A
- Maximum Duty Cycle N/A
- Maximum Input Frequency (MHz) 300
- Maximum Output Frequency (MHz) 300
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time @ Maximum CL (ns) 4.4@3.15V to 3.45V
- Maximum Quiescent Current (mA) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of Clock Inputs 1
- Number of Outputs per Chip 2
- Output Logic Level LVDS
- Power Supply Type Single
- Spread Spectrum No
- Supplier Temperature Grade Industrial
- Type Fanout Buffer
