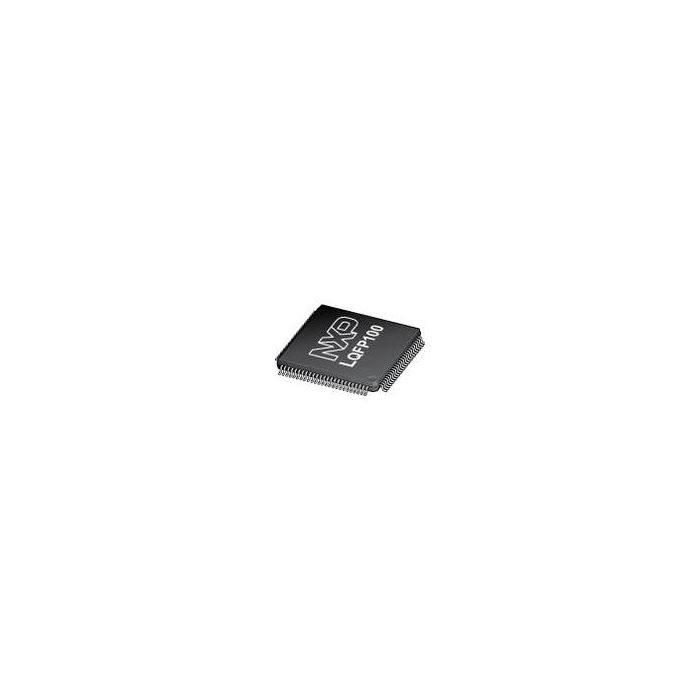

LPC2364FBD100
| Do pobrania | Download |
|---|---|
| Main description | MCU 16-bit/32-bit ARM7TDMI-S RISC 128KB Flash 3.3V 100-Pin LQFP |
MCU 16-bit/32-bit ARM7TDMI-S RISC 128KB Flash 3.3V 100-Pin LQFP
Informacje podstawowe
- ProducentNXP Semiconductors
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 9
- Inventory 4*
- PCNs 25
- MaskPart LPC2364FBD100%
- IntroductionDate May 12, 2006
Parametry
- ADC Channels 6
- ADC Resolution (bit) 10
- Analog Comparators N/A
- CAN 2
- Core Architecture ARM
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) 16|32
- Data Memory Size N/A
- Device Core ARM7TDMI-S
- Display Driver N/A
- Ethernet 1
- Family Name LPC2300
- I2C 3
- I2S 1
- Instruction Set Architecture RISC
- Interface Type CAN/Ethernet/I2C/I2S/SPI/UART/USB
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 72
- Maximum Clock Rate (MHz) 72
- Maximum Expanded Memory Size 4GB
- Maximum Power Dissipation (mW) 1500
- Maximum Storage Temperature (°C) 125
- Minimum Storage Temperature (°C) -40
- Number of ADCs Single
- Number of DACs Single
- Number of Programmable I/Os 70
- Number of Timers 4
- PWM 1
- Program Memory Size 128KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 34KB
- SPI 1
- Special Features CAN Controller
- Supplier Temperature Grade N/A
- Temperature Flag Opr
- UART 4
- USART 0
- USB 1
- Watchdog 1
