LPC2148FBD64
| Do pobrania | Download |
|---|---|
| Main description | MCU 16-bit/32-bit ARM7TDMI-S RISC 512KB Flash 3.3V 64-Pin LQFP |

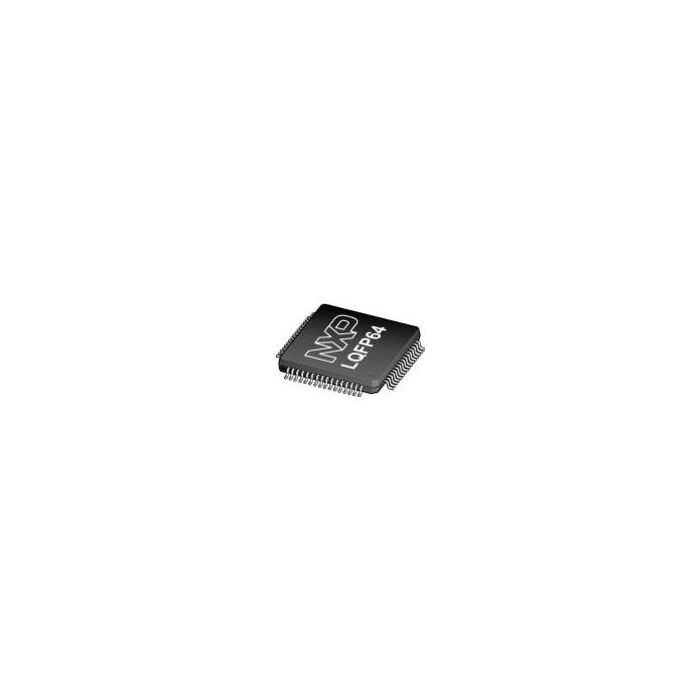

MCU 16-bit/32-bit ARM7TDMI-S RISC 512KB Flash 3.3V 64-Pin LQFP
Informacje podstawowe
- ProducentNXP Semiconductors
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 13
- Inventory 9*
- PCNs 17
- FoundINBOMs 1
- MaskPart LPC2148FBD64%
- IntroductionDate Aug 31, 2001
Parametry
- ADC Channels 14/14
- ADC Resolution (bit) 10/10
- Analog Comparators N/A
- CAN 0
- Core Architecture ARM
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) 16|32
- Data Memory Size N/A
- Device Core ARM7TDMI-S
- Display Driver N/A
- Ethernet 0
- Family Name LPC2000
- I2C 2
- I2S 0
- Instruction Set Architecture RISC
- Interface Type I2C/SPI/SSP/UART/USB
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 60
- Maximum Clock Rate (MHz) 60
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) 1500
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs Dual
- Number of DACs Single
- Number of Programmable I/Os 45
- Number of Timers 2
- PWM 1
- Program Memory Size 512KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 40KB
- SPI 1
- Special Features N/A
- Supplier Temperature Grade N/A
- Temperature Flag Opr
- UART 2
- USART 0
- USB 1
- Watchdog 1
