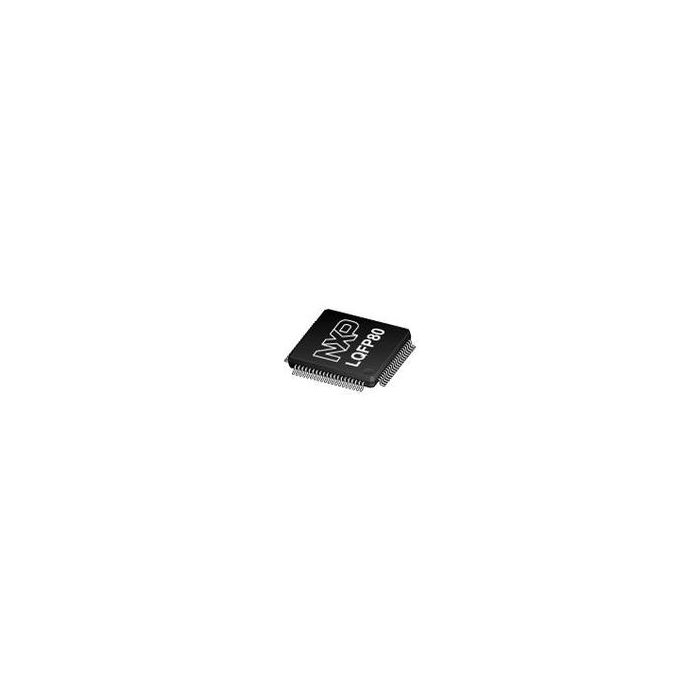

LPC1754FBD80,551
| Do pobrania | Download |
|---|---|
| Main description | MCU 32-bit ARM Cortex M3 RISC 128KB Flash 2.5V/3.3V 80-Pin LQFP Tray |
MCU 32-bit ARM Cortex M3 RISC 128KB Flash 2.5V/3.3V 80-Pin LQFP Tray
Informacje podstawowe
- ProducentNXP Semiconductors
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 35
- Inventory 9
- PCNs 23
- MaskPart LPC1754FBD80%
- IntroductionDate May 28, 2008
- AliasParts 935287913551
Parametry
- ADC Channels 6
- ADC Resolution (bit) 12
- Analog Comparators N/A
- CAN 1
- Core Architecture ARM
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) 32
- Data Memory Size 64KB
- Device Core ARM Cortex M3
- Display Driver N/A
- Ethernet 0
- Family Name LPC1700
- I2C 2
- I2S 0
- Instruction Set Architecture RISC
- Interface Type CAN/I2C/SPI/UART/USB
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 100
- Maximum Clock Rate (MHz) 100
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) 1500
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs Single
- Number of DACs Single
- Number of Programmable I/Os 52
- Number of Timers 4
- PWM 2
- Program Memory Size 128KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 32KB
- SPI 1
- Special Features CAN Controller
- Supplier Temperature Grade N/A
- Temperature Flag Opr
- UART 4
- USART 0
- USB 1
- Watchdog 1
