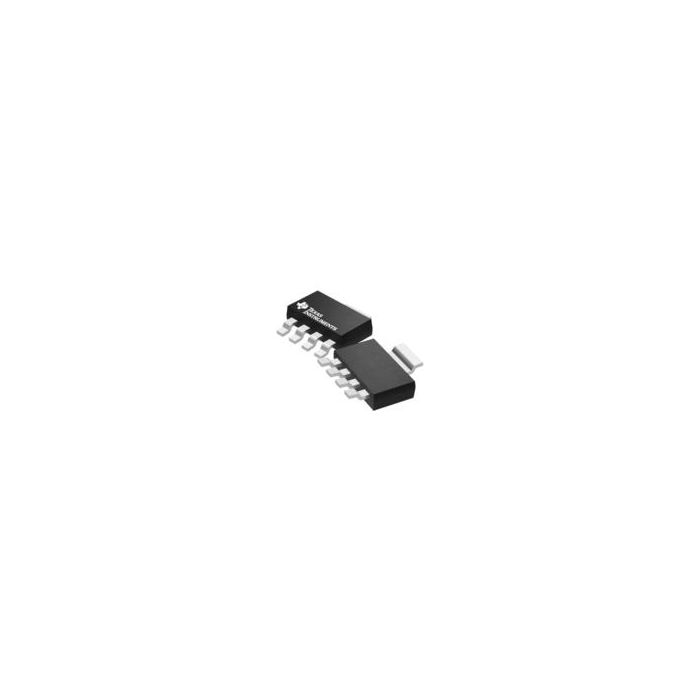

LP3875EMP-ADJ/NOPB
| Do pobrania | Download |
|---|---|
| Main description | LDO Regulator Pos 1.216V 1.5A 5-Pin(4+Tab) SOT-223 T/R |
LDO Regulator Pos 1.216V 1.5A 5-Pin(4+Tab) SOT-223 T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 158
- Inventory 5
- PCNs 43
- GIDEP-Alerts 2
- MaskPart LP3875EMPADJNOPB%
- IntroductionDate Sep 01, 2003
Parametry
- Accuracy (%) N/A
- Junction to Ambient 90°C/W
- Junction to Case N/A
- Line Regulation 0.02%(Typ)
- Load Regulation 0.06%(Typ)
- Maximum Dropout Voltage @ Current (V) 0.05@150mA|0.45@1.5A
- Maximum Input Voltage (V) 7
- Maximum Output Current (A) 1.5
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Input Voltage (V) 2.5
- Minimum Storage Temperature (°C) -65
- Number of Outputs 1
- Output Type Adjustable
- Output Voltage (V) 1.216(Min)
- Output Voltage Range (V) <1.8
- Polarity Positive
- Reference Voltage (V) 1.216(Typ)
- Special Features Current Limit|Thermal Shutdown Protection
- Supplier Temperature Grade Extended Industrial
- Type LDO
- Typical Dropout Voltage @ Current (V) 0.038@150mA|0.38@1.5A
- Typical Power Dissipation (mW) N/A
- Typical Quiescent Current (mA) 6
