LMV358SG-13

Więcej informacji
Do pobrania Download

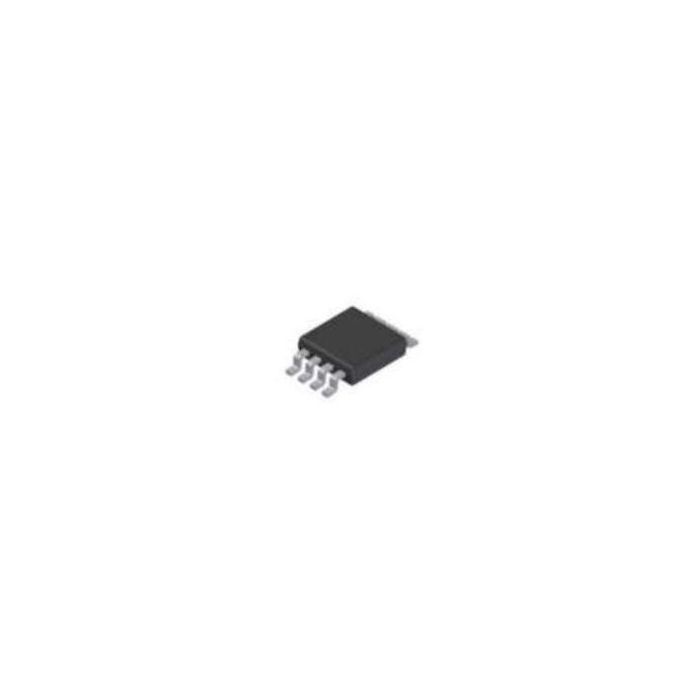

Main description Op Amp Dual Low Voltage Amplifier R-R O/P 5.5V 8-Pin SO T/R
Op Amp Dual Low Voltage Amplifier R-R O/P 5.5V 8-Pin SO T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1157
  • Inventory 6
  • PCNs 17
  • MaskPart LMV358SG%
  • IntroductionDate Jun 22, 2009

Parametry

  • Manufacturer Type Low Voltage Amplifier
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Input Bias Current (uA) 0.5@5V
  • Maximum Input Offset Current (uA) 0.15@5V
  • Maximum Input Offset Voltage (mV) 9@5V
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) N/A
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Supply Current (mA) 0.6@5V
  • Maximum Supply Voltage Range (V) 5.5 to 6
  • Minimum CMRR (dB) 50
  • Minimum CMRR Range (dB) 50 to 60
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum PSRR (dB) 50
  • Minimum Single Supply Voltage (V) 2.7
  • Number of Channels per Chip 2
  • Output Type CMOS
  • Power Supply Type Single
  • Process Technology CMOS
  • Rail to Rail Rail to Rail Output
  • Shut Down Support No
  • Supplier Temperature Grade N/A
  • Type Low Voltage Amplifier
  • Typical Dual Supply Voltage (V) N/R
  • Typical Gain Bandwidth Product (MHz) 1
  • Typical Input Noise Voltage Density (nV/rtHz) 23@5V
  • Typical Inverting Input Current Noise Density (pA/rtHz) N/A
  • Typical Noninverting Input Current Noise Density (pA/rtHz) N/A
  • Typical Output Current (mA) N/A
  • Typical Settling Time (ns) N/A
  • Typical Single Supply Voltage (V) 3|5
  • Typical Slew Rate (V/us) 1@5V
  • Typical Voltage Gain (dB) 100
