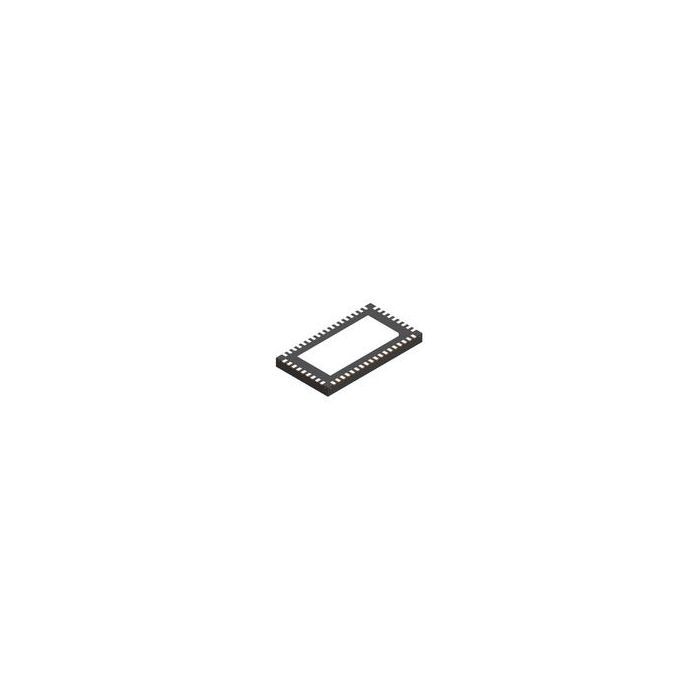

LMH6523SQ/NOPB
| Do pobrania | Download |
|---|---|
| Main description | SP Amp Variable Gain Amp Quad 5.25V 56-Pin WQFN EP T/R |
SP Amp Variable Gain Amp Quad 5.25V 56-Pin WQFN EP T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 3
- Inventory 2
- PCNs 40
- IntroductionDate Jan 09, 2013
Parametry
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) 500(Typ)@5V
- Maximum Input Offset Voltage (mV) N/A
- Maximum Input Resistance (MOhm) 0.000097(Typ)@5V
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) N/A
- Maximum Single Supply Voltage (V) 5.25
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) 465(Typ)@5V
- Maximum Supply Voltage Range (V) 5 to 7
- Maximum Voltage Gain (dB) 25.74
- Maximum Voltage Gain Range (dB) <35
- Minimum CMRR (dB) 35(Typ)
- Minimum CMRR Range (dB) <60
- Minimum DC Continuous Isolation Voltage (V) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum PSRR (dB) N/A
- Minimum Single Supply Voltage (V) 4.75
- Minimum Storage Temperature (°C) -65
- Number of Channels per Chip 4
- Number of Elements per Chip 4
- Output Type Differential
- Power Supply Type Single
- Rail to Rail N/A
- Supplier Temperature Grade Industrial
- Type Variable Gain Amplifier
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Current (mA) N/A
- Typical Single Supply Voltage (V) 5
