LMD125-0018-C440-2010000
| Do pobrania | Download |
|---|---|
| Main description | AC/DC LED Power Supply Single |

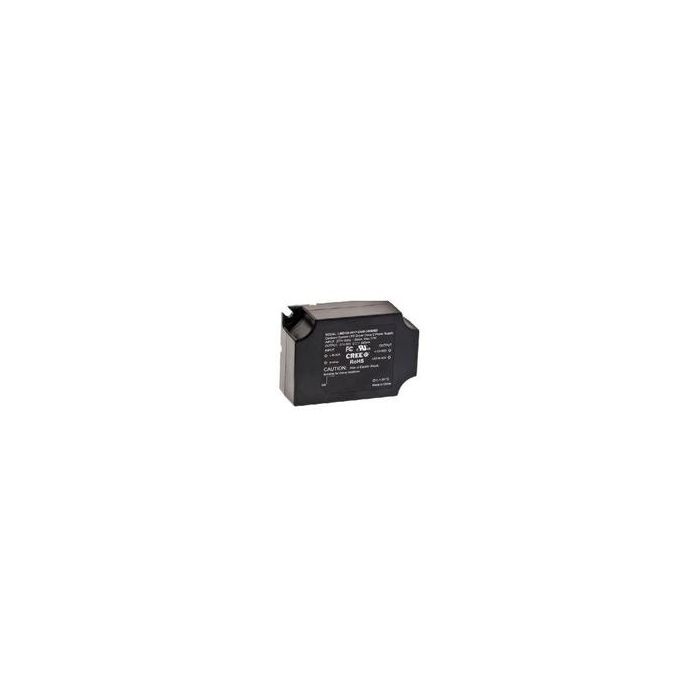

AC/DC LED Power Supply Single
Informacje podstawowe
- ProducentCree
- EURoHSYes (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Inventory 2
- PCNs 1
- MaskPart LMD1250018C4402010000%
- IntroductionDate Nov 23, 2011
Parametry
- Dimming TRIAC
- Efficiency (%) 81(Typ)
- IP Rating IP20
- Input Voltage Range 207VAC to 253VAC
- Input/Output Type AC/DC
- Maximum Output Current (mA) 440(Typ)
- Maximum Output Power (W) N/A
- Maximum Storage Temperature (°C) N/A
- Minimum Storage Temperature (°C) N/A
- Number of Outputs 1
- Output Voltage Range (VDC) 37
- Power Factor Correction 0.95
- Product Weight (g) 146
- Supplier Temperature Grade N/A
- Tradename N/A
- Type Constant Current
- Warranty N/A
