LM358DGKR
| Do pobrania | Download |
|---|---|

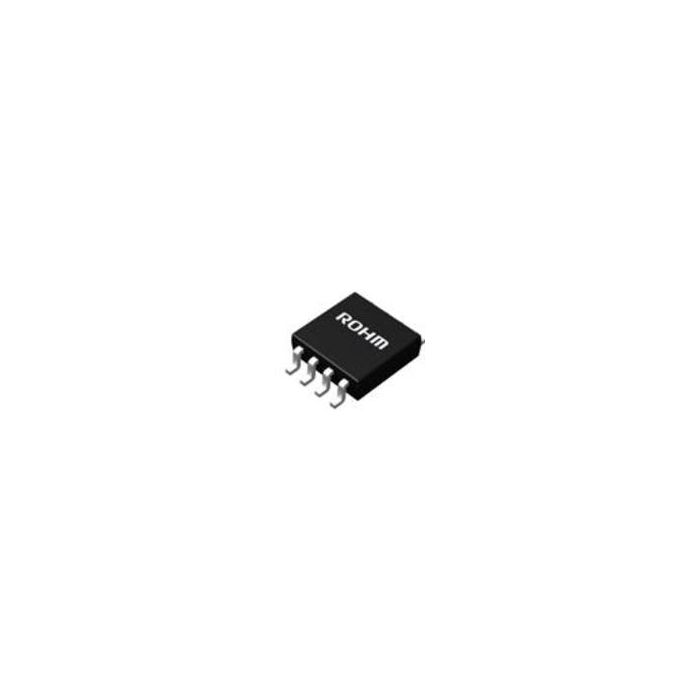

| Main description | Op Amp Dual GP ±16V/32V 8-Pin MSOP T/R |
Op Amp Dual GP ±16V/32V 8-Pin MSOP T/R
Informacje podstawowe
- ProducentROHM Semiconductor
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 1172
- PCNs 2
- MaskPart LM358DGKR%
- IntroductionDate Oct 30, 2005
- SupplierUrl http://search.rohm.com/?q=LM358DGKR&la=en&sort=0&layout=site&count=10&ftype=
Parametry
- Manufacturer Type General Purpose Amplifier
- Maximum Dual Supply Voltage (V) ±16
- Maximum Input Bias Current (uA) 0.25@5V
- Maximum Input Offset Current (uA) 0.05@5V
- Maximum Input Offset Voltage (mV) 7@30V
- Maximum Power Dissipation (mW) 470
- Maximum Quiescent Current (mA) 1.2@5V@0C to 70C
- Maximum Single Supply Voltage (V) 32
- Maximum Supply Current (mA) N/A
- Maximum Supply Voltage Range (V) 32 to 36
- Minimum CMRR (dB) 65
- Minimum CMRR Range (dB) 65 to 70
- Minimum Dual Supply Voltage (V) ±1.5
- Minimum PSRR (dB) N/A
- Minimum Single Supply Voltage (V) 3
- Number of Channels per Chip 2
- Output Type N/A
- Power Supply Type Single|Dual
- Process Technology Bipolar
- Rail to Rail N/A
- Shut Down Support No
- Supplier Temperature Grade Commercial
- Type General Purpose Amplifier
- Typical Dual Supply Voltage (V) ±3|±5|±9|±12|±15
- Typical Gain Bandwidth Product (MHz) 0.7
- Typical Input Noise Voltage Density (nV/rtHz) 40@±15V
- Typical Inverting Input Current Noise Density (pA/rtHz) N/A
- Typical Noninverting Input Current Noise Density (pA/rtHz) N/A
- Typical Output Current (mA) 30@15V
- Typical Settling Time (ns) N/A
- Typical Single Supply Voltage (V) 5|9|12|15|18|24|28
- Typical Slew Rate (V/us) 0.3@±15V
- Typical Voltage Gain (dB) 100
