LM258DR
| Do pobrania | Download |
|---|---|

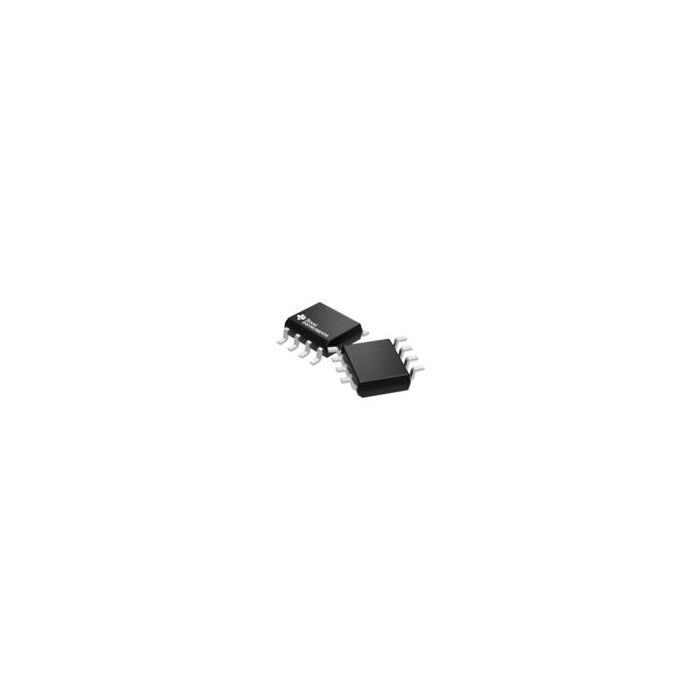

| Main description | Op Amp Dual GP ±16V/32V 8-Pin SOIC T/R |
Op Amp Dual GP ±16V/32V 8-Pin SOIC T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 1074
- Inventory 6
- PCNs 83
- GIDEP-Alerts 2
- MaskPart LM258D%
- IntroductionDate Sep 01, 2010
- AliasParts LM258DRE4
Parametry
- Manufacturer Type General Purpose Amplifier
- Maximum Dual Supply Voltage (V) ±16
- Maximum Input Bias Current (uA) 0.15@5V
- Maximum Input Offset Current (uA) 0.03@5V
- Maximum Input Offset Voltage (mV) 5@30V
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) 1.2@5V@-25C to 85C
- Maximum Single Supply Voltage (V) 32
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Maximum Supply Voltage Range (V) 32 to 36
- Minimum CMRR (dB) 70
- Minimum CMRR Range (dB) 70 to 71
- Minimum Dual Supply Voltage (V) ±1.5
- Minimum PSRR (dB) 100(Typ)
- Minimum Single Supply Voltage (V) 3
- Minimum Storage Temperature (°C) -65
- Number of Channels per Chip 2
- Output Type N/A
- Power Supply Type Single|Dual
- Process Technology Bipolar
- Rail to Rail N/A
- Shut Down Support No
- Supplier Temperature Grade N/A
- Type General Purpose Amplifier
- Typical Dual Supply Voltage (V) ±3|±5|±9|±12|±15
- Typical Gain Bandwidth Product (MHz) 0.7
- Typical Input Noise Voltage Density (nV/rtHz) 40@±15V
- Typical Inverting Input Current Noise Density (pA/rtHz) N/A
- Typical Noninverting Input Current Noise Density (pA/rtHz) N/A
- Typical Output Current (mA) 30@15V
- Typical Settling Time (ns) N/A
- Typical Single Supply Voltage (V) 5|9|12|15|18|24|28
- Typical Slew Rate (V/us) 0.3@±15V
- Typical Voltage Gain (dB) 100
