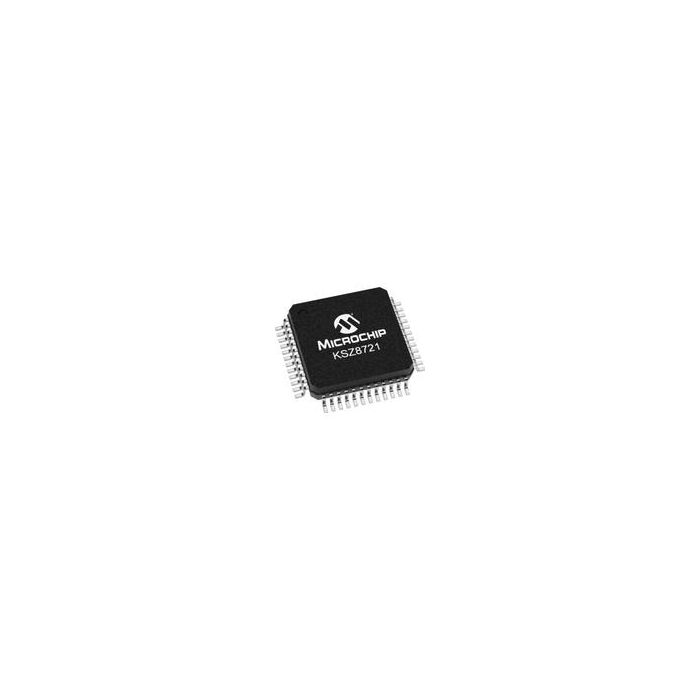

KSZ8721BL A4
Do pobrania | Download |
---|---|
Main description | PHY 1-CH 10Mbps/100Mbps 48-Pin LQFP |
PHY 1-CH 10Mbps/100Mbps 48-Pin LQFP
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 25
- PCNs 47
- MaskPart KSZ8721BLA4%
- IntroductionDate Aug 01, 2003
Parametry
- Integrated CDR No
- JTAG Support No
- Maximum Data Rate 100Mbps
- Maximum Power Dissipation (mW) N/A
- Maximum Supply Current (mA) 116(Typ)
- Number of Channels per Chip 1
- Optical Carrier Level N/A
- Overhead Octet Support No
- PHY Line Side Interface No
- Power Supply Type Analog|Digital
- Standard Supported 10BASE-T|100BASE-FX|100BASE-TX|IEEE 802.3|IEEE 802.3u
- Supplier Temperature Grade Commercial
- Typical Data Rate (Mbps) 10/100
- UTOPIA Level N/A
