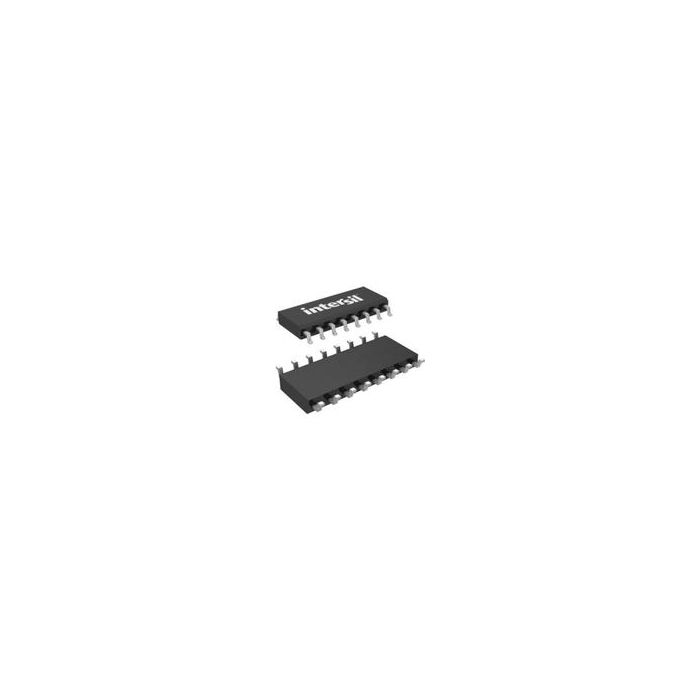

ISL84052IBZ
| Do pobrania | Download |
|---|---|
| Main description | Analog Multiplexer Dual 4:1 16-Pin SOIC N Tube |
Analog Multiplexer Dual 4:1 16-Pin SOIC N Tube
Informacje podstawowe
- ProducentIntersil
- EURoHSYes (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 56
- Inventory 2
- PCNs 27
- MaskPart ISL84052IBZ%
- IntroductionDate May 06, 2003
- SupplierUrl http://www.intersil.com/products/partsearch.asp?txtprodnr=ISL84052IBZ
Parametry
- Chip Enable Signals Yes
- Configuration Dual 4:1
- Function General
- Input Signal Type Single
- Latch-Up Proof No
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±6
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 30
- Maximum Low Level Output Current (mA) 30
- Maximum On Resistance (Ohm) 225@5V
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Bus to Bus (ns) 75(Typ)@±4.5V
- Maximum Single Supply Voltage (V) 12
- Maximum Supply Current (mA) 0.001@5.5V
- Maximum Turn-Off Time (ns) 100(Typ)@3V
- Maximum Turn-On Time (ns) 180(Typ)@3V
- Minimum Dual Supply Voltage (V) ±2
- Minimum Single Supply Voltage (V) 2
- Multiplexer Architecture 4:1
- Number of Channels per Chip 2
- Number of Inputs per Chip 8
- Number of Outputs per Chip 2
- Output Signal Type Single
- Polarity N/A
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) 35
- Special Features Break-Before-Make
- Supplier Temperature Grade Industrial
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Multiplexer
- Typical Dual Supply Voltage (V) ±3|±5
- Typical Single Supply Voltage (V) 3|5|9
- Typical Supply Current (mA) ±0.0001@±5.5V
