IS61VPS204836B-250B3L
| Do pobrania | Download |
|---|---|

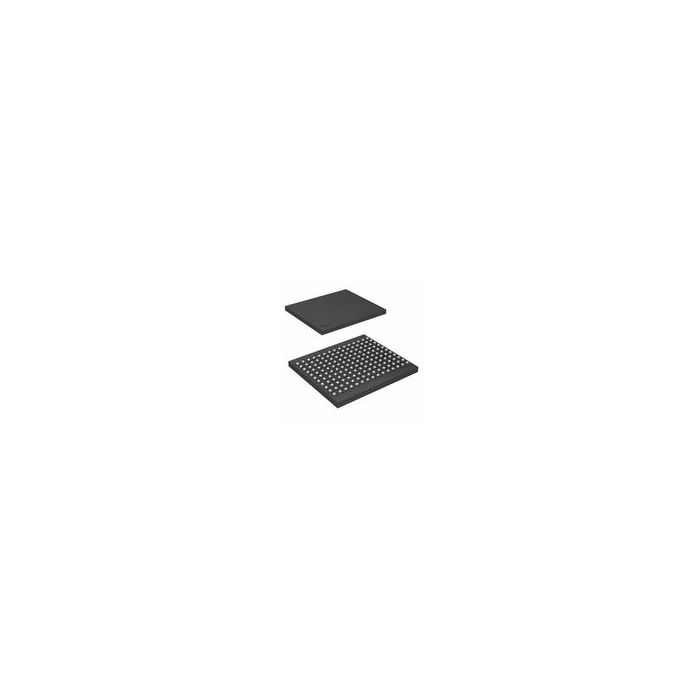

| Main description | SRAM Chip Sync Quad 2.5V 72M-bit 2M x 36 2.6ns 165-Pin BGA |
SRAM Chip Sync Quad 2.5V 72M-bit 2M x 36 2.6ns 165-Pin BGA
Informacje podstawowe
- ProducentIntegrated Silicon Solution Inc
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 176
- Inventory 2
- PCNs 4
- MaskPart IS61VPS204836B250B3L%
- IntroductionDate Oct 08, 2012
Parametry
- Address Bus Width (bit) 21
- Architecture Pipelined
- Burst Length (Words) N/A
- Data Rate Architecture SDR
- Density (bit) 72M
- Function N/A
- Maximum Access Time (ns) 2.6
- Maximum Clock Rate (MHz) 250
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -55
- Number of Bits per Word (bit) 36
- Number of I/O Lines (bit) 36
- Number of Ports 4
- Number of Words 2M
- Read Latency (Cycles) N/A
- Supplier Temperature Grade Commercial
- Timing Type Synchronous
