| Main description |

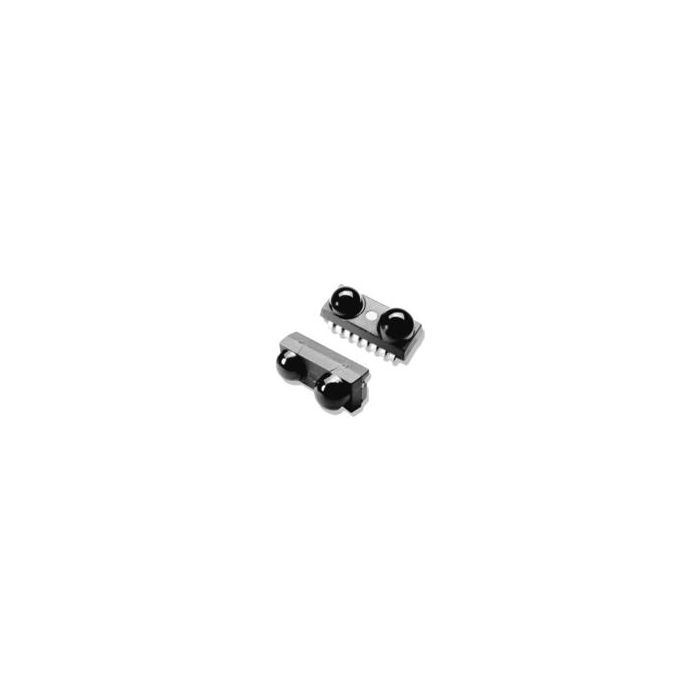

IRDA TX/RX 4Mbps 3.3V/5V 8-Pin T/R |
IRDA TX/RX 4Mbps 3.3V/5V 8-Pin T/R
Informacje podstawowe
- ProducentVishay
- EURoHSNo (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 30
- PCNs 23
- MaskPart IRMS6452%
- IntroductionDate Nov 13, 2001
Parametry
- Dimensions (mm) 9.8x4.8x4
- Half Intensity Angle Degrees (°) 30(Min)
- LED Supply Voltage (V) 2.7 to 3.3
- Maximum Communication Distance (cm) N/A
- Maximum Data Rate (Mbps) 4
- Maximum Fall Time (ns) 40/50
- Maximum Forward Current (mA) 100
- Maximum Operating Supply Voltage (V) 5.25
- Maximum Operating Temperature (°C) 75
- Maximum Rise Time (ns) 40/60
- Minimum Operating Supply Voltage (V) 2.7
- Minimum Operating Temperature (°C) -25
- Operating Supply Voltage (V) 2.7 to 5.25
- Peak Wavelength (nm) 870
- Pulse Width (us) 22.13/2.1
- Radiant Intensity (mW/sr) 200
- Supplier Temperature Grade N/A
- Type TX/RX
- Typical Operating Supply Voltage (V) 3.3|5
