IRF7604TRPBF

Więcej informacji
Do pobrania Download

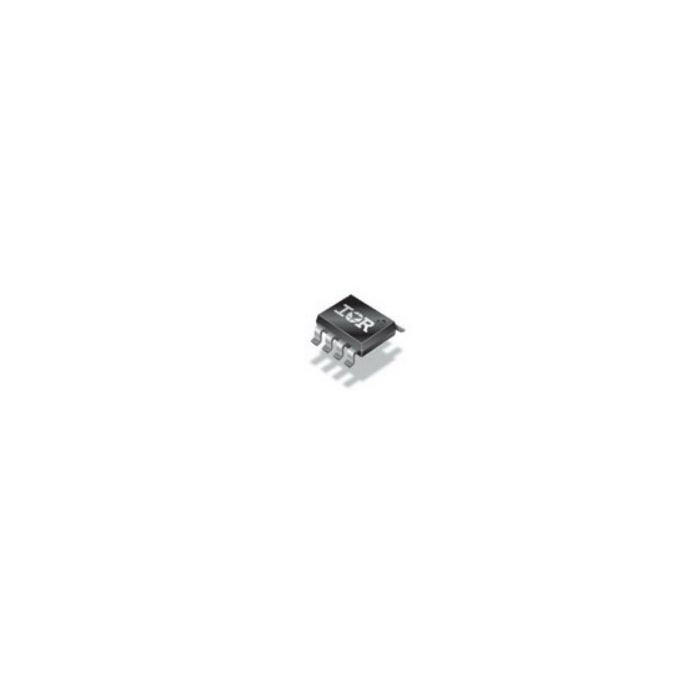

Main description Trans MOSFET P-CH 20V 3.6A 8-Pin SOIC T/R
Trans MOSFET P-CH 20V 3.6A 8-Pin SOIC T/R

Informacje podstawowe

  • ProducentInfineon Technologies AG
  • EURoHSYes (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Crosses 23
  • PCNs 18
  • MaskPart IRF7604%PBF
  • IntroductionDate Feb 21, 2005
  • EnablingEnergyEfficiency No
  • SupplierUrl http://www.infineon.com/cms/en/product/findProductTypeByName.html?q=IRF7604TRPBF

Parametry

  • Category Power MOSFET
  • Channel Mode Enhancement
  • Channel Type P
  • Configuration Single Quad Drain Triple Source
  • Material N/A
  • Maximum Continuous Drain Current (A) 3.6
  • Maximum Continuous Drain Current @ Temperature (A) 2.9@Ta=70C
  • Maximum Drain Source Resistance (mOhm) 90@10V
  • Maximum Drain Source Resistance @ Vgs (mOhm) 90@4.5V|130@2.7V
  • Maximum Drain Source Voltage (V) 20
  • Maximum Gate Source Leakage Current (nA) 100
  • Maximum Gate Source Voltage (V) ±12
  • Maximum Gate Threshold Voltage (V) 0.7(Min)
  • Maximum IDSS (uA) 1
  • Maximum Junction Ambient Thermal Resistance 70°C/W
  • Maximum Junction Case Thermal Resistance N/A
  • Maximum Operating Temperature (°C) 150
  • Maximum Power Dissipation (mW) 1800
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -55
  • Number of Elements per Chip 1
  • Process Technology HEXFET
  • Supplier Temperature Grade N/A
  • Typical Drain Source Resistance @ 125°C (mOhm) N/A
  • Typical Drain Source Resistance @ 25°C (mOhm) N/A
  • Typical Fall Time (ns) 38
  • Typical Forward Transconductance (S) 2.6(Min)
  • Typical Gate Charge @ 10V (nC) N/A
  • Typical Gate Charge @ Vgs (nC) 13@4.5V
  • Typical Gate Resistance (Ohm) N/A
  • Typical Gate to Drain Charge (nC) 5.6
  • Typical Gate to Source Charge (nC) 2.6
  • Typical Input Capacitance @ Vds (pF) 590@15V
  • Typical Output Capacitance (pF) 330
  • Typical Reverse Recovery Charge (nC) 38
  • Typical Rise Time (ns) 53
  • Typical Switch Charge (nC) N/A
  • Typical Turn-Off Delay Time (ns) 31
  • Typical Turn-On Delay Time (ns) 17
