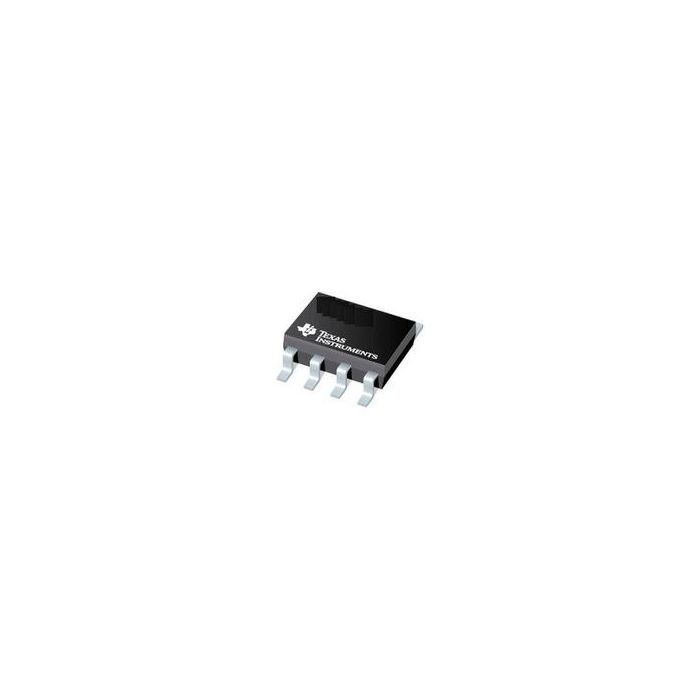

INA149AIDR
| Do pobrania | Download |
|---|---|
| Main description | SP Amp Difference Amplifier Single ±18V/36V 8-Pin SOIC T/R |
SP Amp Difference Amplifier Single ±18V/36V 8-Pin SOIC T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 7
- Inventory 5
- PCNs 40
- GIDEP-Alerts 1
- MaskPart INA149AID%
- IntroductionDate Apr 01, 2011
Parametry
- Maximum Dual Supply Voltage (V) ±18
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) 0.35(Typ)@5V
- Maximum Input Resistance (MOhm) 0.8(Typ)@5V
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) 0.9@±18V
- Maximum Single Supply Voltage (V) 36
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Maximum Supply Voltage Range (V) 30 to 50
- Maximum Voltage Gain (dB) 0(Typ)
- Maximum Voltage Gain Range (dB) <35
- Minimum CMRR (dB) 90(Typ)
- Minimum CMRR Range (dB) 85 to 95
- Minimum DC Continuous Isolation Voltage (V) N/A
- Minimum Dual Supply Voltage (V) ±2
- Minimum PSRR (dB) N/A
- Minimum Single Supply Voltage (V) 4
- Minimum Storage Temperature (°C) -65
- Number of Channels per Chip 1
- Number of Elements per Chip 1
- Output Type N/A
- Power Supply Type Single|Dual
- Rail to Rail N/A
- Supplier Temperature Grade Extended Industrial
- Type Difference Amplifier
- Typical Dual Supply Voltage (V) ±3|±5|±9|±12|±15
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Current (mA) N/A
- Typical Single Supply Voltage (V) 5
