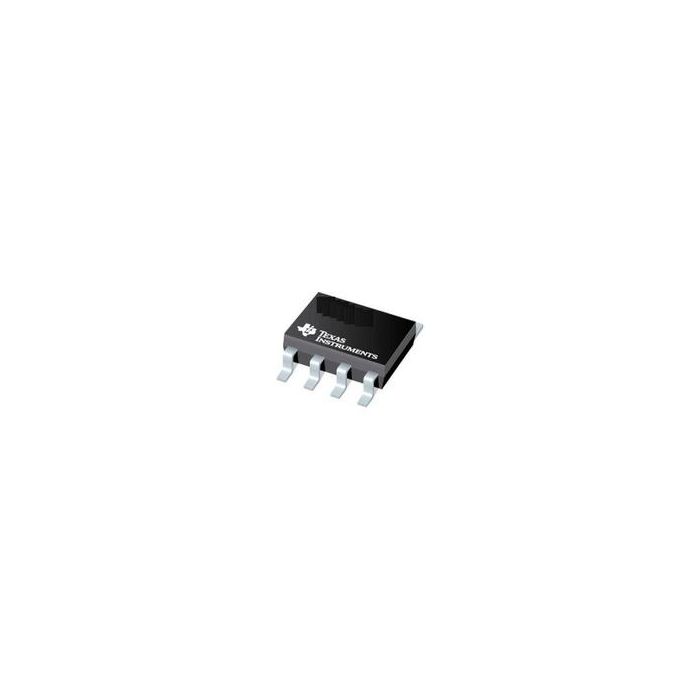

INA128UA
| Do pobrania | Download |
|---|---|
| Main description | INST Amp Single ±18V 8-Pin SOIC Tube |
INST Amp Single ±18V 8-Pin SOIC Tube
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 93
- Inventory 11
- PCNs 64
- MaskPart INA128UA%
- IntroductionDate Apr 01, 2006
Parametry
- Maximum Dual Supply Voltage (V) ±18
- Maximum Input Bias Current (uA) 0.01@±15V
- Maximum Input Offset Voltage (mV) N/A
- Maximum Input Resistance (MOhm) 100000(Typ)@±15V
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) 0.75@±15V
- Maximum Single Supply Voltage (V) N/R
- Maximum Supply Current (mA) N/A
- Maximum Supply Voltage Range (V) 30 to 50
- Maximum Voltage Gain (dB) 80
- Maximum Voltage Gain Range (dB) 75 to 100
- Minimum CMRR (dB) 73
- Minimum CMRR Range (dB) 60 to 75
- Minimum DC Continuous Isolation Voltage (V) N/A
- Minimum Dual Supply Voltage (V) ±2.25
- Minimum PSRR (dB) N/A
- Minimum Single Supply Voltage (V) N/R
- Number of Channels per Chip 1
- Power Supply Type Dual
- Rail to Rail N/A
- Supplier Temperature Grade Military
- Typical Dual Supply Voltage (V) ±15
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Current (mA) N/A
- Typical Single Supply Voltage (V) N/R
