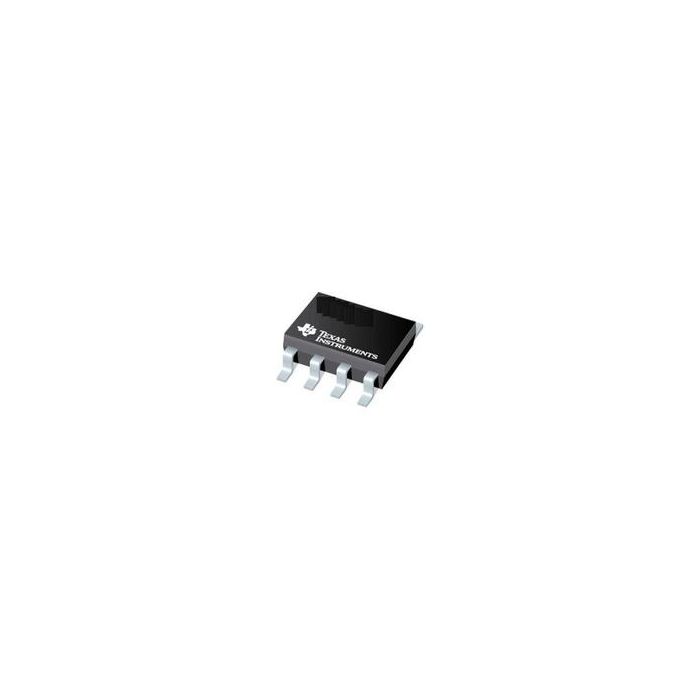

INA122UA
| Do pobrania | Download |
|---|---|
| Main description | INST Amp Single R-R O/P ±18V/36V 8-Pin SOIC Tube |
INST Amp Single R-R O/P ±18V/36V 8-Pin SOIC Tube
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 57
- Inventory 8
- PCNs 68
- FoundINBOMs 1
- MaskPart INA122UA%
- IntroductionDate Apr 01, 2006
Parametry
- Maximum Dual Supply Voltage (V) ±18
- Maximum Input Bias Current (uA) 0.05@5V
- Maximum Input Offset Voltage (mV) 0.5@5V
- Maximum Input Resistance (MOhm) 10000(Typ)@5V
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) 0.085@5V
- Maximum Single Supply Voltage (V) 36
- Maximum Supply Current (mA) N/A
- Maximum Supply Voltage Range (V) 30 to 50
- Maximum Voltage Gain (dB) 80(Typ)
- Maximum Voltage Gain Range (dB) 75 to 100
- Minimum CMRR (dB) 76
- Minimum CMRR Range (dB) 75 to 85
- Minimum DC Continuous Isolation Voltage (V) N/A
- Minimum Dual Supply Voltage (V) -0.9|1.3
- Minimum PSRR (dB) 100(Typ)
- Minimum Single Supply Voltage (V) 2.2
- Number of Channels per Chip 1
- Power Supply Type Single|Dual
- Rail to Rail Rail to Rail Output
- Supplier Temperature Grade N/A
- Typical Dual Supply Voltage (V) ±3|±5|±9|±12|±15
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Current (mA) N/A
- Typical Single Supply Voltage (V) 5
