HV1635-2R7356-R
| Do pobrania | Download |
|---|---|

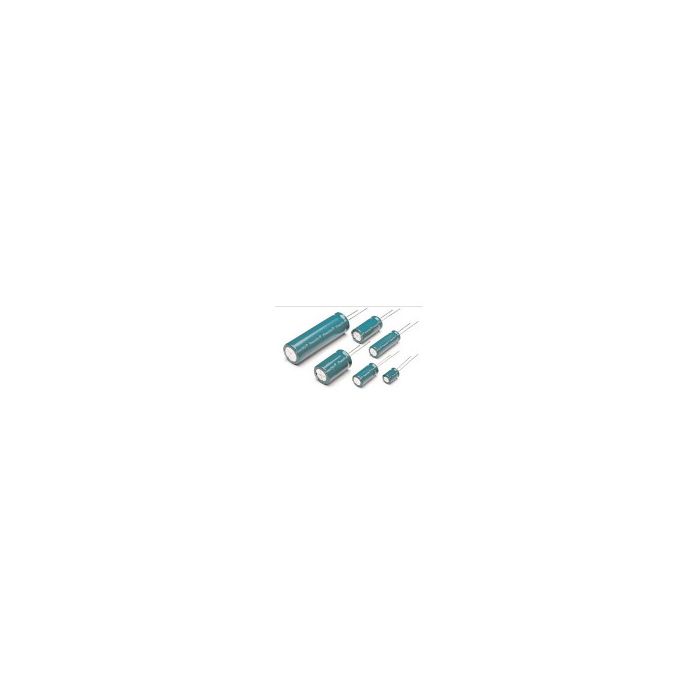

| Main description | Cap Supercap 35F 2.7V -10% to 30% (16.5 X 38mm) Radial Aluminum Cylindrical Can 7.5mm 51uA 0.024 Ohm 1000h 65°C Bulk |
Cap Supercap 35F 2.7V -10% to 30% (16.5 X 38mm) Radial Aluminum Cylindrical Can 7.5mm 51uA 0.024 Ohm 1000h 65°C Bulk
Informacje podstawowe
- ProducentEaton
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Inventory 5
- PCNs 66
- GIDEP-Alerts 1
- IntroductionDate Jan 10, 2011
Parametry
- Capacitance Value 35F
- Construction Aluminum Cylindrical Can
- Equivalent Series Inductance (nH) N/A
- Equivalent Series Resistance (Ohm) 0.024
- Equivalent Series Resistance Type Ultra Low
- Failure Rate N/R
- Leakage Current (uA) 51
- Lifetime (h) 1000
- Maximum Storage Temperature (°C) N/A
- Military Standard N/R
- Minimum Storage Temperature (°C) N/A
- Package Region World Wide
- Polarity Polar
- Ripple Current (mA) N/A
- Tolerance -10% to 30%
- Tradename PowerStor®
- Voltage 2.7VDC
