HV0830-2R7605-R
| Do pobrania | Download |
|---|---|
| Main description | Cap Supercap 6F 2.7V -10% to 30% (8.5 X 31mm) Radial Aluminum Cylindrical Can 3.5mm 20uA 0.04 Ohm 1000h 65°C Bulk |

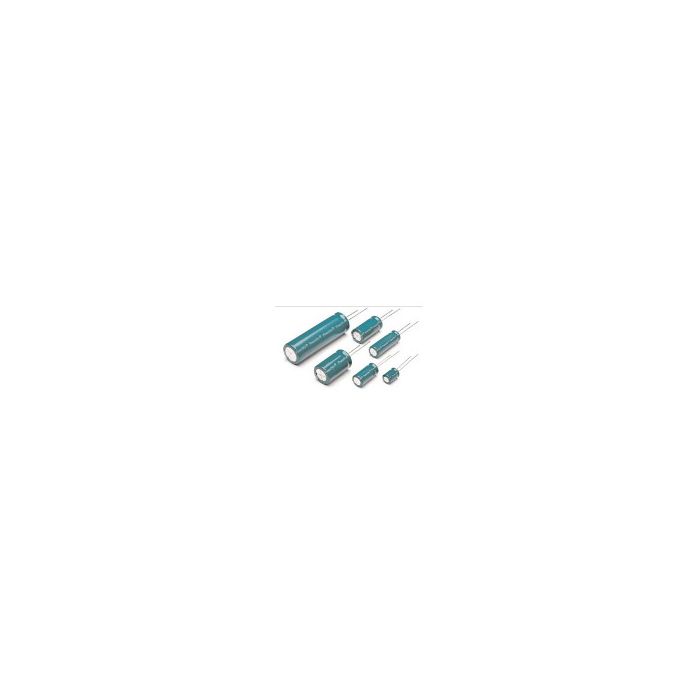

Cap Supercap 6F 2.7V -10% to 30% (8.5 X 31mm) Radial Aluminum Cylindrical Can 3.5mm 20uA 0.04 Ohm 1000h 65°C Bulk
Informacje podstawowe
- ProducentEaton
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Inventory 9
- PCNs 65
- IntroductionDate Jan 10, 2011
Parametry
- Capacitance Value 6F
- Construction Aluminum Cylindrical Can
- Equivalent Series Inductance (nH) N/A
- Equivalent Series Resistance (Ohm) 0.04
- Equivalent Series Resistance Type Ultra Low
- Failure Rate N/R
- Leakage Current (uA) 20
- Lifetime (h) 1000
- Maximum Storage Temperature (°C) N/A
- Military Standard N/R
- Minimum Storage Temperature (°C) N/A
- Package Region World Wide
- Polarity Polar
- Ripple Current (mA) N/A
- Tolerance -10% to 30%
- Tradename PowerStor®
- Voltage 2.7VDC
