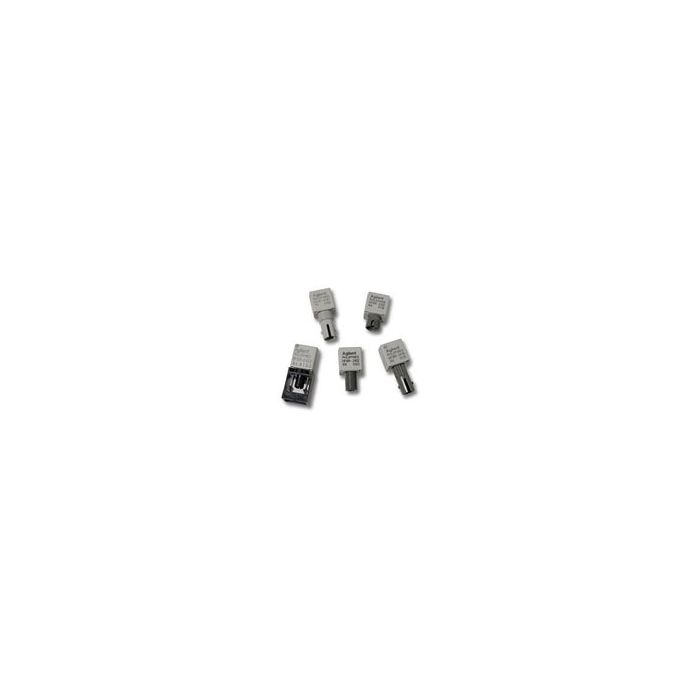

RX Optical Fiber 5MBd 8-Pin
Informacje podstawowe
- ProducentBroadcom Limited
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Inventory 4
- PCNs 63
- MaskPart HFBR24E2Z%
- IntroductionDate Jan 01, 2006
Parametry
- Average Optical Output Power (dBm) N/A
- Connector Type SC
- Contact Resistance (MOhm) N/A
- Dissipation Current (mA) N/A
- Emitter Type LED
- Fiber Mode Multi Mode
- Form Factor N/A
- Jitter (ns) N/A
- Maximum Data Rate 5MBd
- Maximum Distance (m) 2700
- Maximum Fall Time (ns) N/A
- Maximum Forward Current (mA) N/A
- Maximum Output Current (mA) 25
- Maximum Power Dissipation (mW) 40
- Maximum Storage Temperature (°C) 85
- Minimum Isolation Voltage (kV) N/A
- Minimum Storage Temperature (°C) -55
- Peak Wavelength (nm) 820
- Rise Time (ns) N/A
- Supplier Temperature Grade N/A
- Transfer Speed N/A
- Type RX
- Typical Breakdown Voltage (V) N/A
- Typical Diode Capacitance (pF) N/A
- Typical Forward Voltage (V) N/A
