HCPL0601R2
| Do pobrania | Download |
|---|---|
| Main description | Optocoupler Logic-Out Open Collector DC-IN 1-CH 8-Pin SOIC N T/R |

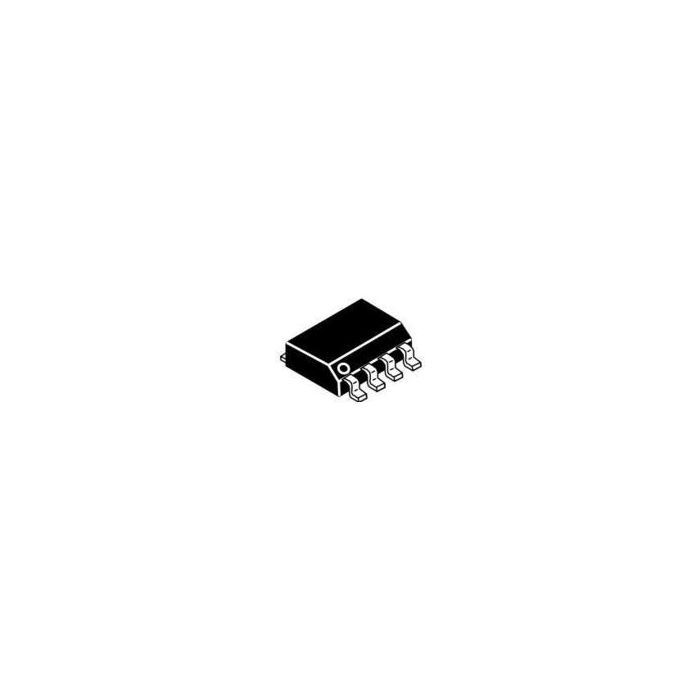

Optocoupler Logic-Out Open Collector DC-IN 1-CH 8-Pin SOIC N T/R
Informacje podstawowe
- ProducentON Semiconductor
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 5
- Inventory 9
- PCNs 49
- MaskPart HCPL0601%
- IntroductionDate Jul 01, 2005
- SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=HCPL0601R2&tabbed=Y&clearFilters=Y&searchType=others
Parametry
- Common Mode Voltage (V) 50
- Current Transfer Ratio Test Current (mA) N/A
- Direction Type Uni-Directional
- Input Type DC
- Logic Gate Type NAND
- Maximum Continuous Output Current (mA) 50
- Maximum Current Transfer Ratio (%) N/A
- Maximum Data Rate 10Mbps
- Maximum Fall Time (us) N/A
- Maximum Forward Current (mA) 50
- Maximum Forward Voltage (V) 1.75
- Maximum Power Dissipation (mW) 85
- Maximum Propagation Delay Skew (ns) N/A
- Maximum Propagation Delay Time (ns) 75
- Maximum Propagation Delay Time (tPHL) (ns) 75
- Maximum Propagation Delay Time (tPLH) (ns) 75
- Maximum Pulse Width Distortion (ns) 35
- Maximum Reverse Voltage (V) 5
- Maximum Rise Time (us) N/A
- Maximum Storage Temperature (°C) 125
- Maximum Supply Voltage (V) 5.5
- Maximum Working Insulation Voltage (V) N/A
- Minimum Common Mode Rejection (kV/us) 5
- Minimum Current Transfer Ratio (%) N/A
- Minimum Forward Current (mA) N/A
- Minimum Forward Voltage (V) N/A
- Minimum Isolation Voltage (Vrms) 3750
- Minimum Storage Temperature (°C) -40
- Minimum Supply Voltage (V) 4.5
- Number of Channels per Chip 1
- Output Type Open Collector
- Polarity Inverting
- Standard UL
- Supplier Temperature Grade N/A
- Typical Fall Time (us) 0.012
- Typical Forward Voltage (V) N/A
- Typical Rise Time (us) 0.05
