HCPL-817-56BE
| Do pobrania | Download |
|---|---|

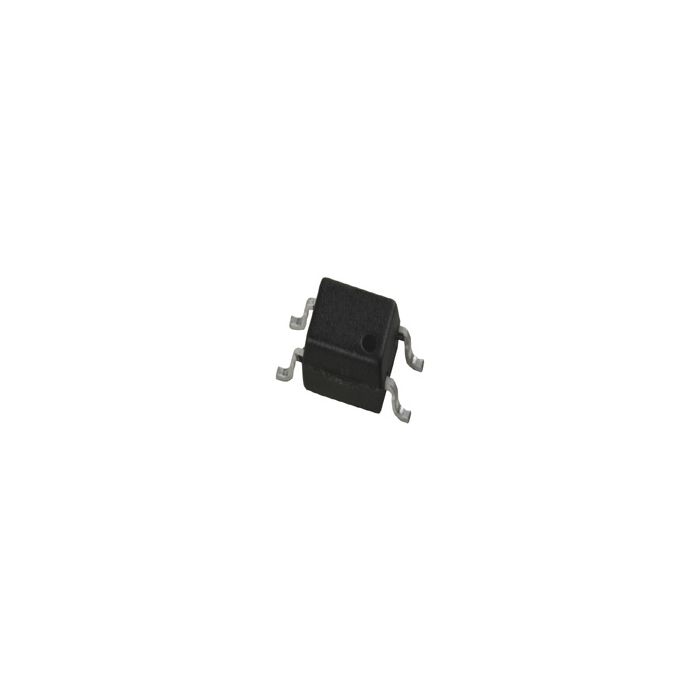

| Main description | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD T/R |
Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD T/R
Informacje podstawowe
- ProducentBroadcom Limited
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 10
- Inventory 5
- PCNs 64
- MaskPart HCPL81756BE%
- IntroductionDate May 31, 2005
Parametry
- Common Mode Voltage (V) N/A
- Current Transfer Ratio Test Current (mA) 5
- Input Type DC
- Maximum Collector Current (mA) 50
- Maximum Collector-Emitter Saturation Voltage (mV) 200
- Maximum Collector-Emitter Voltage (V) 35
- Maximum Current Transfer Ratio (%) 260
- Maximum Data Rate N/A
- Maximum Fall Time (us) 18
- Maximum Forward Current (mA) 50
- Maximum Forward Voltage (V) 1.4
- Maximum Power Dissipation (mW) 200
- Maximum Propagation Delay Time (tPHL) (ns) N/A
- Maximum Propagation Delay Time (tPLH) (ns) N/A
- Maximum Reverse Voltage (V) 6
- Maximum Rise Time (us) 18
- Maximum Supply Voltage (V) N/A
- Maximum Working Insulation Voltage (V) N/A
- Minimum Collector Emitter Voltage (V) N/A
- Minimum Common Mode Rejection (kV/us) N/A
- Minimum Current Transfer Ratio (%) 130
- Minimum Forward Voltage (V) N/A
- Minimum Isolation Voltage (Vrms) 5000
- Number of Channels per Chip 1
- Output Device Transistor
- Output Type DC
- Standard CSA|DIN|EN|IEC|UL
- Supplier Temperature Grade N/A
- Typical Bandwidth (MHz) N/A
- Typical Fall Time (us) 3
- Typical Forward Voltage (V) 1.2
- Typical Rise Time (us) 4
