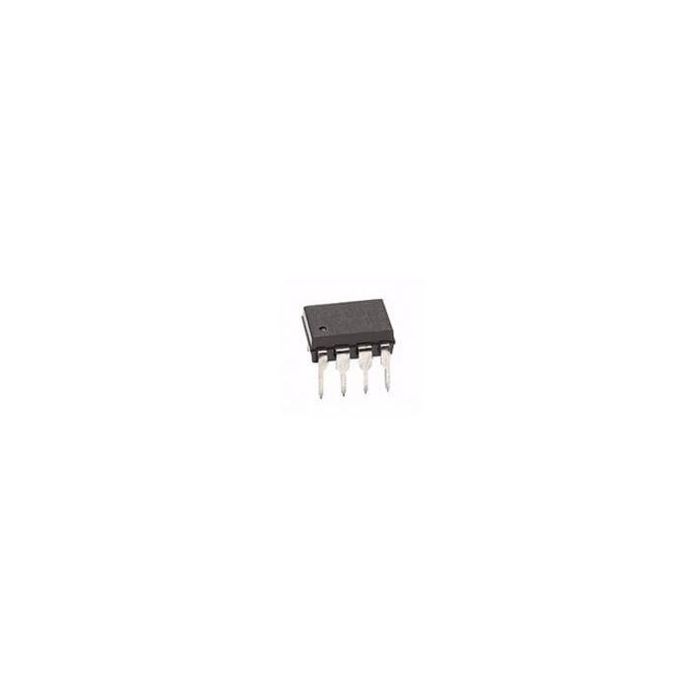

HCPL-3120-500E
| Do pobrania | Download |
|---|---|
| Main description | Optocoupler Drive Push-Pull 1-CH 30V 1500V 8-Pin PDIP SMD T/R |
Optocoupler Drive Push-Pull 1-CH 30V 1500V 8-Pin PDIP SMD T/R
Informacje podstawowe
- ProducentBroadcom Limited
- EURoHSYes (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 93
- Inventory 4
- PCNs 67
- GIDEP-Alerts 3
- MaskPart HCPL3120500E%
- IntroductionDate May 31, 2005
Parametry
- Common Mode Voltage (V) 1500
- Maximum Data Rate N/A
- Maximum Fall Time (ns) 100(Typ)
- Maximum Forward Current (mA) 16
- Maximum Forward Voltage (V) 1.8
- Maximum Peak Output Current (A) 2.5
- Maximum Power Dissipation (mW) 295
- Maximum Propagation Delay Time (tPHL) (ns) 500
- Maximum Propagation Delay Time (tPLH) (ns) 500
- Maximum Pulse Width Distortion (ns) 300
- Maximum Reverse Voltage (V) 5
- Maximum Rise Time (ns) 100(Typ)
- Maximum Storage Temperature (°C) 125
- Maximum Working Insulation Voltage (Vp) 630
- Minimum Common Mode Rejection (kV/us) 25
- Minimum Forward Current (mA) 7
- Minimum Forward Voltage (V) 1.2
- Minimum Isolation Voltage (Vrms) 3750
- Minimum Peak Output Current (A) 2
- Minimum Storage Temperature (°C) -55
- Number of Channels per Chip 1
- Output Type Push-Pull
- Supplier Temperature Grade Industrial
