HCPL-2231-000E
| Do pobrania | Download |
|---|---|
| Main description | Optocoupler Logic-Out Totem-Pole DC-IN 2-CH 8-Pin PDIP Tube |

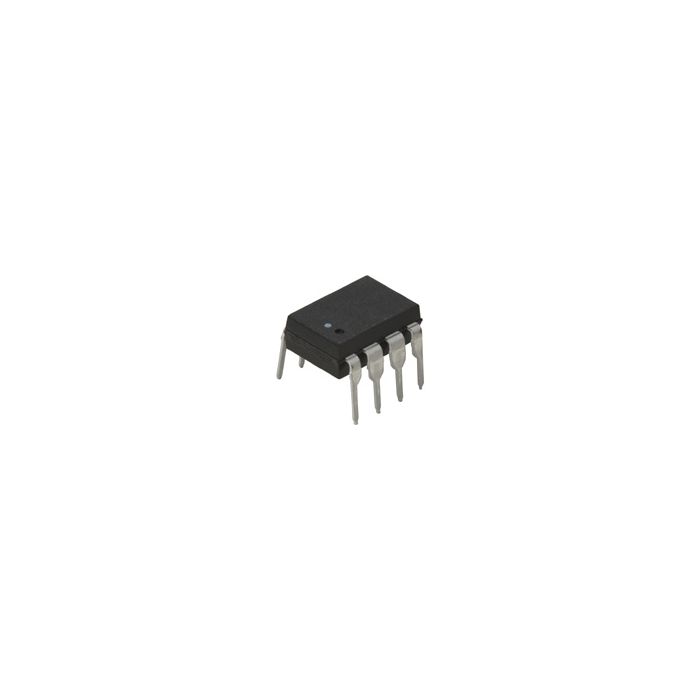

Optocoupler Logic-Out Totem-Pole DC-IN 2-CH 8-Pin PDIP Tube
Informacje podstawowe
- ProducentBroadcom Limited
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 4
- Inventory 4
- PCNs 67
- GIDEP-Alerts 1
- MaskPart HCPL2231000E%
- IntroductionDate Sep 19, 2001
Parametry
- Common Mode Voltage (V) 50
- Current Transfer Ratio Test Current (mA) N/A
- Direction Type Uni-Directional
- Input Type DC
- Logic Gate Type AND Schmitt
- Maximum Continuous Output Current (mA) 25
- Maximum Current Transfer Ratio (%) N/A
- Maximum Data Rate 5MBd(Typ)
- Maximum Fall Time (us) N/A
- Maximum Forward Current (mA) 10
- Maximum Forward Voltage (V) 1.7
- Maximum Power Dissipation (mW) 294
- Maximum Propagation Delay Skew (ns) N/A
- Maximum Propagation Delay Time (ns) 300
- Maximum Propagation Delay Time (tPHL) (ns) 300
- Maximum Propagation Delay Time (tPLH) (ns) 300
- Maximum Pulse Width Distortion (ns) N/A
- Maximum Reverse Voltage (V) 5
- Maximum Rise Time (us) N/A
- Maximum Storage Temperature (°C) 125
- Maximum Supply Voltage (V) 20
- Maximum Working Insulation Voltage (V) 630
- Minimum Common Mode Rejection (kV/us) 1
- Minimum Current Transfer Ratio (%) N/A
- Minimum Forward Current (mA) N/A
- Minimum Forward Voltage (V) N/A
- Minimum Isolation Voltage (Vrms) 3750
- Minimum Storage Temperature (°C) -55
- Minimum Supply Voltage (V) 4.5
- Number of Channels per Chip 2
- Output Type Totem-Pole
- Polarity Non-Inverting
- Standard CSA|UL
- Supplier Temperature Grade N/A
- Typical Fall Time (us) 0.007
- Typical Forward Voltage (V) 1.5
- Typical Rise Time (us) 0.03
