HCPL-0631-500E
| Do pobrania | Download |
|---|---|
| Main description | Optocoupler Logic-Out Open Collector DC-IN 2-CH 8-Pin SOIC T/R |

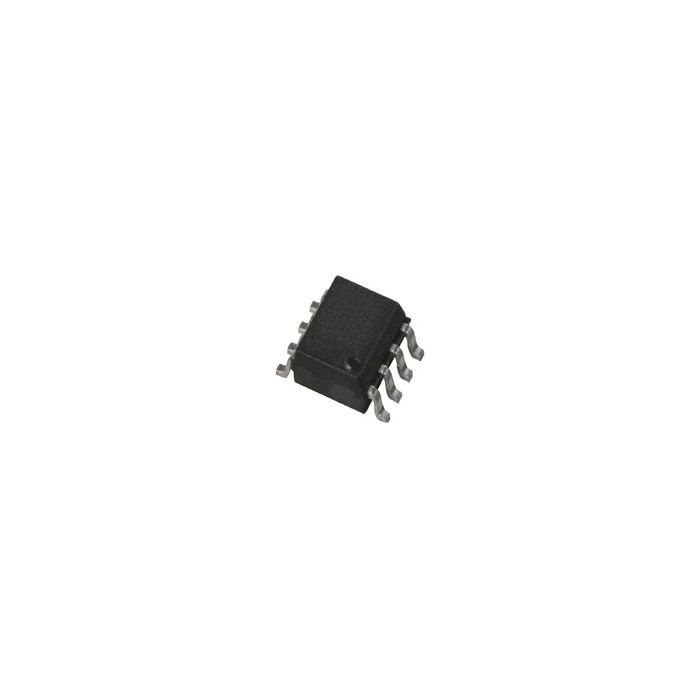

Optocoupler Logic-Out Open Collector DC-IN 2-CH 8-Pin SOIC T/R
Informacje podstawowe
- ProducentBroadcom Limited
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 13
- Inventory 5
- PCNs 70
- GIDEP-Alerts 1
- MaskPart HCPL0631500E%
- IntroductionDate Nov 01, 2004
Parametry
- Common Mode Voltage (V) 1000
- Current Transfer Ratio Test Current (mA) N/A
- Direction Type Uni-Directional
- Input Type DC
- Logic Gate Type Inverter
- Maximum Continuous Output Current (mA) 50
- Maximum Current Transfer Ratio (%) N/A
- Maximum Data Rate 10MBd(Typ)
- Maximum Fall Time (us) N/A
- Maximum Forward Current (mA) 15
- Maximum Forward Voltage (V) 1.75
- Maximum Power Dissipation (mW) 60
- Maximum Propagation Delay Skew (ns) 40
- Maximum Propagation Delay Time (ns) 75
- Maximum Propagation Delay Time (tPHL) (ns) 75
- Maximum Propagation Delay Time (tPLH) (ns) 75
- Maximum Pulse Width Distortion (ns) 35
- Maximum Reverse Voltage (V) 5
- Maximum Rise Time (us) N/A
- Maximum Storage Temperature (°C) 125
- Maximum Supply Voltage (V) 5.5
- Maximum Working Insulation Voltage (V) 567
- Minimum Common Mode Rejection (kV/us) 10
- Minimum Current Transfer Ratio (%) N/A
- Minimum Forward Current (mA) N/A
- Minimum Forward Voltage (V) 1.4
- Minimum Isolation Voltage (Vrms) 3750
- Minimum Storage Temperature (°C) -55
- Minimum Supply Voltage (V) 4.5
- Number of Channels per Chip 2
- Output Type Open Collector
- Polarity Inverting
- Standard CSA|UL
- Supplier Temperature Grade N/A
- Typical Fall Time (us) 0.01
- Typical Forward Voltage (V) 1.5
- Typical Rise Time (us) 0.024
