FT600-2000-2
| Do pobrania | Download |
|---|---|
| Main description | Fuse Chip 2A 250V SMD Solder Pad Ceramic T/R |

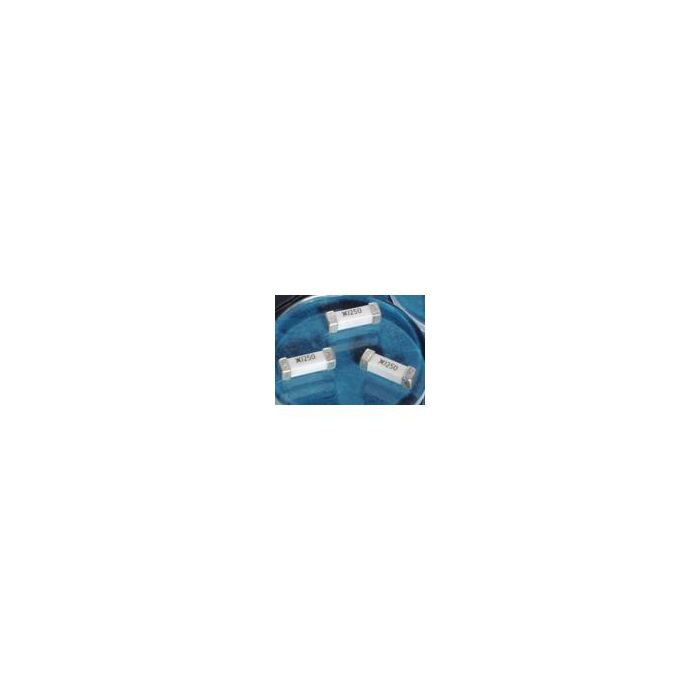

Fuse Chip 2A 250V SMD Solder Pad Ceramic T/R
Informacje podstawowe
- ProducentLittelfuse
- EURoHSYes (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 1
- PCNs 32
- GIDEP-Alerts 1
- IntroductionDate Nov 09, 2015
- AliasParts D29077-000
- SupplierUrl http://www.littelfuse.com/searchresults.html?Ntt=FT600-2000-2
Parametry
- Acting N/A
- Application Motor Circuit
- Breaking Capacity @ Rated Voltage (A) N/A
- Current Rating (A) 2
- Fuse Material Ceramic
- Maximum AC Voltage Rating (V) 250
- Maximum DC Voltage Rating (V) N/A
- Maximum Power Dissipation (W) N/A
- Maximum Storage Temperature (°C) N/A
- Minimum Storage Temperature (°C) N/A
- Supplier Temperature Grade N/A
- Tradename N/A
- Type Chip
- Typical Cold Resistance (Ohm) 0.05
- Typical Melting I2t (A²s) 18
- Voltage Rating (V) 250
