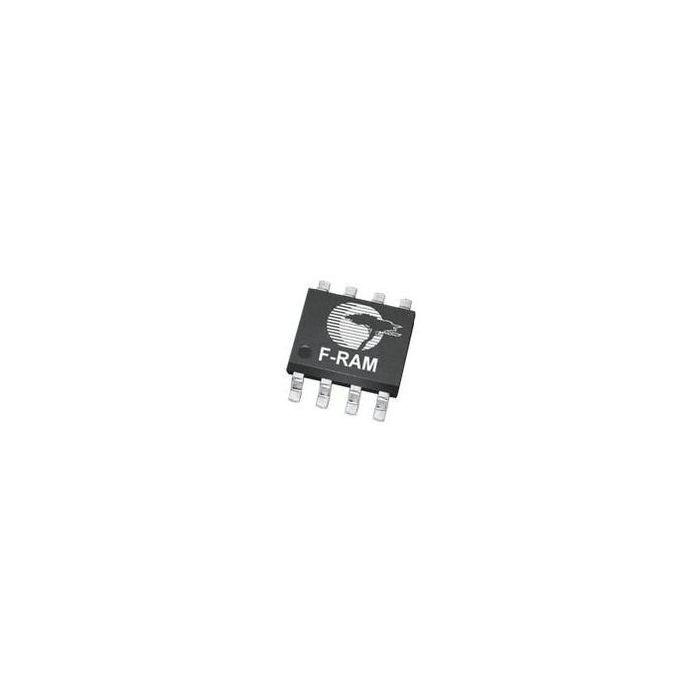

FM24CL64B-G
Do pobrania | Download |
---|---|
Main description | FRAM 64Kbit Serial-2Wire Interface 3.3V 8-Pin SOIC Tube |
FRAM 64Kbit Serial-2Wire Interface 3.3V 8-Pin SOIC Tube
Informacje podstawowe
- ProducentCypress Semiconductor
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 21
- Inventory 9
- PCNs 37
- GIDEP-Alerts 7
- MaskPart FM24CL64BG%
- IntroductionDate Feb 18, 2011
- SupplierUrl http://www.cypress.com/?app=search&searchType=part&keywords=FM24CL64B-G
Parametry
- Data Bus Width (bit) 8
- Density (bit) 64K
- Density Range (bit) 1K to 256K
- Density in Bits (bit) 65536
- Interface Type Serial-2Wire
- Maximum Access Time (ns) 550
- Maximum Storage Temperature (°C) 125
- Minimum Storage Temperature (°C) -65
- Organization 8Kx8
- Package Family Name SOP
- Process Technology N/A
- Supplier Temperature Grade Industrial
