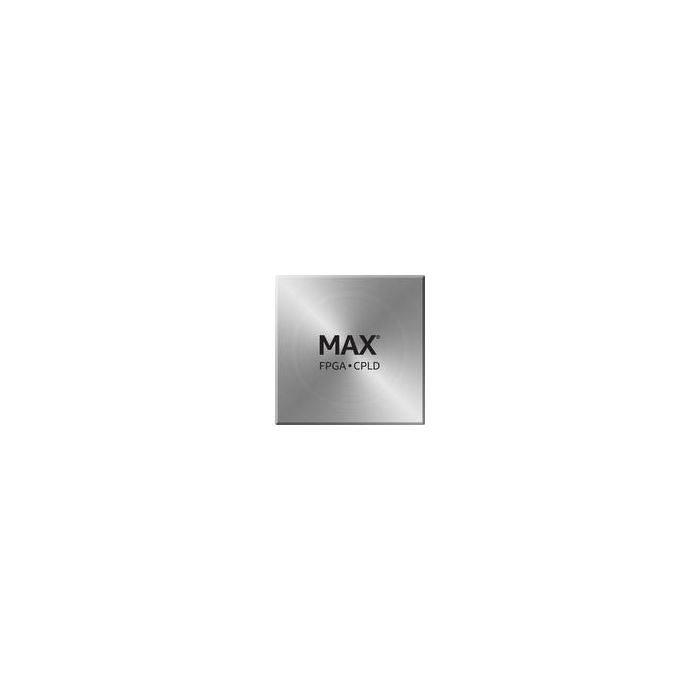

EPM3256ATI144-10N
| Do pobrania | Download |
|---|---|
| Main description | CPLD MAX® 3000A Family 5K Gates 256 Macro Cells 95.2MHz 3.3V 144-Pin TQFP Tray |
CPLD MAX® 3000A Family 5K Gates 256 Macro Cells 95.2MHz 3.3V 144-Pin TQFP Tray
Informacje podstawowe
- ProducentIntel
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 200
- Inventory 1
- PCNs 52
- GIDEP-Alerts 3
- MaskPart EPM3256ATI14410N%
Parametry
- Clock Management N/A
- Copy Protection Yes
- Data Gate No
- Device Logic Cells N/A
- Device System Gates 5000
- Family Name MAX® 3000A
- I/O Voltage (V) 2.5|3.3
- In-System Programmability Yes
- Individual Output Enable Control Yes
- Maximum Clock to Output Delay (ns) 6.4
- Maximum Internal Frequency (MHz) 125
- Maximum Propagation Delay Time (ns) 10
- Memory Size (Kbit) N/A
- Number of Flip Flops N/A
- Number of Global Clocks 2
- Number of I/O Banks N/A
- Number of Inter Dielectric Layers N/A
- Number of Logic Blocks/Elements 16
- Number of Macro Cells 256
- Number of Product Terms per Macro 32
- Number of User I/Os 116
- Process Technology N/A
- Program Memory Type EEPROM
- Programmability Yes
- RAM Bits (Kbit) N/A
- Reprogrammability Support Yes
- Speed Grade 10
- Supplier Temperature Grade Industrial
- Temperature Flag Opr
- Tolerant Configuration Interface Voltage (V) 2.5|3.3|5
- Tradename MAX
