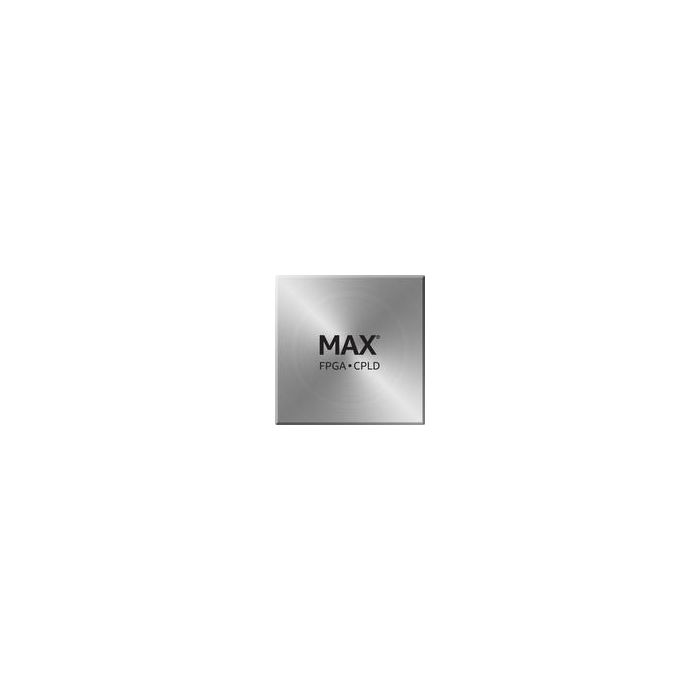

EPM3032ATI44-10N
| Do pobrania | Download |
|---|---|
| Main description | CPLD MAX 3000A Family 600 Gates 32 Macro Cells 103.1MHz 3.3V 44-Pin TQFP |
CPLD MAX 3000A Family 600 Gates 32 Macro Cells 103.1MHz 3.3V 44-Pin TQFP
Informacje podstawowe
- ProducentAltera/Intel Programmable Solutions
- EURoHSYes (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 460
- Inventory 5
- PCNs 16
- MaskPart EPM3032ATI4410N%
- SupplierUrl http://www.altera.com/cgi-bin/devsearch.pl?col=corp&docsetConstraints=&qt=EPM3032ATI44-10N&scope=3
Parametry
- Clock Management N/A
- Copy Protection Yes
- Data Gate No
- Device Logic Cells N/A
- Device System Gates 600
- Family Name MAX® 3000A
- I/O Voltage (V) 2.5|3.3
- In-System Programmability Yes
- Individual Output Enable Control Yes
- Maximum Clock to Output Delay (ns) 6.7
- Maximum Internal Frequency (MHz) 125
- Maximum Propagation Delay Time (ns) 10
- Memory Size (Kbit) N/A
- Number of Flip Flops N/A
- Number of Global Clocks 2
- Number of I/O Banks N/A
- Number of Inter Dielectric Layers N/A
- Number of Logic Blocks/Elements 2
- Number of Macro Cells 32
- Number of Product Terms per Macro 32
- Number of User I/Os 34
- Process Technology N/A
- Program Memory Type EEPROM
- Programmability Yes
- RAM Bits (Kbit) N/A
- Reprogrammability Support Yes
- Speed Grade 10
- Supplier Temperature Grade Industrial
- Temperature Flag Opr
- Tolerant Configuration Interface Voltage (V) 2.5|3.3|5
- Tradename MAX
