EP3CLS200F484I7N

Powiadom mnie gdy produkt będzie dostępny

Więcej informacji
Do pobrania	Download

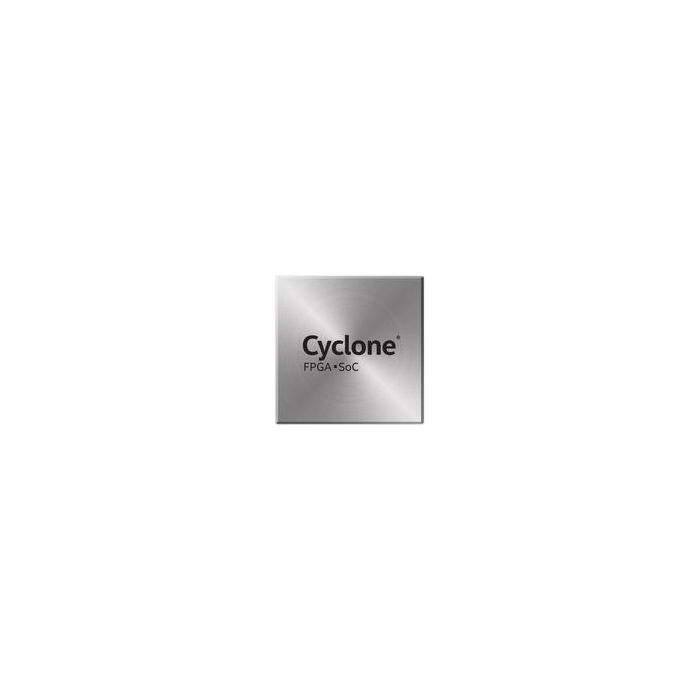

Main description	FPGA Cyclone® III LS Family 198464 Cells 437.5MHz 65nm Technology 1.2V 484-Pin FBGA

PARAMETRY PRODUKTU

FPGA Cyclone® III LS Family 198464 Cells 437.5MHz 65nm Technology 1.2V 484-Pin FBGA

Informacje podstawowe

ProducentAltera/Intel Programmable Solutions
EURoHSYes (2011/65/EU)
Automotive No

Informacje dodatkowe

Crosses 1479
PCNs 18
MaskPart EP3CLS200F484I7N%
IntroductionDate Mar 01, 2007
SupplierUrl http://www.altera.com/cgi-bin/devsearch.pl?col=corp&docsetConstraints=&qt=EP3CLS200F484I7N&scope=3

Parametry

Copy Protection Yes
Dedicated DSP N/A
Device Logic Cells 198464
Device Logic Gates N/A
Device Logic Units 198464
Device Number of DLLs/PLLs 4
Device PCIe Hard IP Blocks N/A
Device System Gates N/A
Digital Control Impedance No
Ethernet MACs N/A
Family Name Cyclone® III LS
Giga Multiply Accumulates per Second N/A
I/O Voltage (V) 1.2|1.5|1.8|2.5|3.3
In-System Programmability No
Maximum DSP Block Frequency (MHz) N/A
Maximum Differential I/O Pairs N/A
Maximum Distributed RAM Bits N/A
Maximum I/O Performance N/A
Maximum Internal Frequency (MHz) 437.5
Maximum LVDS Data Rate (Mbps) 875
Maximum MLAB Capacity (Kbit) N/A
Maximum Number of SERDES Channels N/A
Maximum Number of User I/Os 210
Maximum Operating Supply Voltage (V) 1.25
Maximum Operating Temperature (°C) 100
Maximum Power Dissipation (mW) N/A
Maximum Propagation Delay Time (ns) N/A
Maximum Storage Temperature (°C) 150
Mega Multiply Accumulates per second N/A
Minimum Operating Supply Voltage (V) 1.15
Minimum Operating Temperature (°C) -40
Minimum Storage Temperature (°C) -65
Number of Global Clocks 20
Number of I/O Banks 8
Number of Inter Dielectric Layers N/A
Number of Multipliers 396 (18x18)
Number of Regional Clocks N/A
Number of Registers N/A
PCI Blocks N/A
Process Technology 65nm
Processor Blocks N/A
Program Memory Type SRAM
Programmability No
RAM Bits (Kbit) 8019
Reprogrammability Support No
Shift Registers N/A
Speed Grade 7
Supplier Temperature Grade Industrial
Supported IP Core Viterbi Compiler, Low-Speed/Hybrid Serial Decoder|Public Key Crypto Engine (BA414E)| 32|64-bit PCI-X bus Master/Target interface Core, 66/100/133Mhz
Supported IP Core Manufacture Altera/CAST, Inc/Barco Silex/PLDA
Temperature Flag Jun
Tolerant Configuration Interface Voltage (V) N/A
Total Number of Block RAM 891
Tradename Cyclone
Transceiver Blocks N/A
Transceiver Speed (Gbps) N/A
Typical Operating Supply Voltage (V) 1.2
Typical Supply Current (mA) N/A
