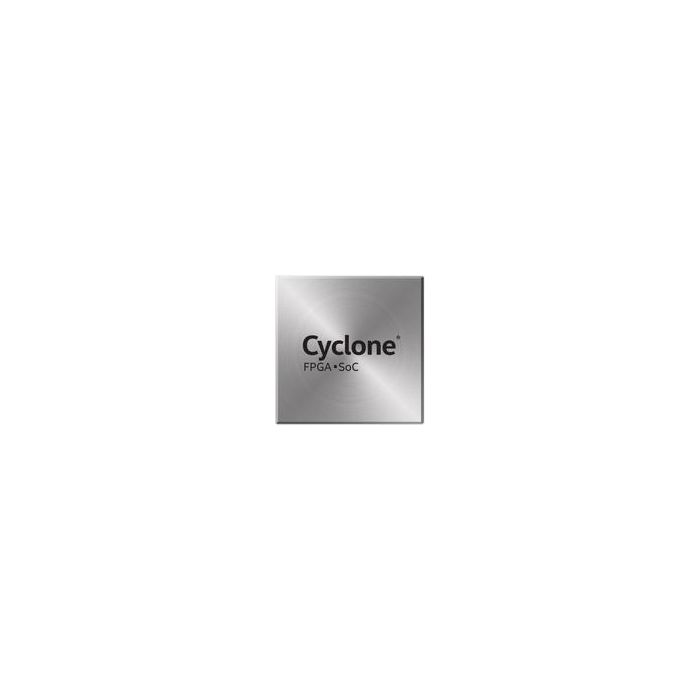

EP1C3T100I7N
| Do pobrania | Download |
|---|---|
| Main description | FPGA Cyclone® Family 2910 Cells 320.1MHz 130nm Technology 1.5V 100-Pin TQFP |
FPGA Cyclone® Family 2910 Cells 320.1MHz 130nm Technology 1.5V 100-Pin TQFP
Informacje podstawowe
- ProducentAltera/Intel Programmable Solutions
- EURoHSYes (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 393
- Inventory 3
- PCNs 18
- GIDEP-Alerts 3
- FoundINBOMs 1
- MaskPart EP1C3T100I7N%
- IntroductionDate Feb 22, 2005
- SupplierUrl http://www.altera.com/cgi-bin/devsearch.pl?col=corp&docsetConstraints=&qt=EP1C3T100I7N&scope=3
Parametry
- Copy Protection Yes
- Dedicated DSP N/A
- Device Logic Cells 2910
- Device Logic Gates N/A
- Device Logic Units 2910
- Device Number of DLLs/PLLs 1
- Device PCIe Hard IP Blocks N/A
- Device System Gates N/A
- Digital Control Impedance No
- Ethernet MACs N/A
- Family Name Cyclone®
- Giga Multiply Accumulates per Second N/A
- I/O Voltage (V) 1.5|1.8|2.5|3.3
- In-System Programmability Yes
- Maximum DSP Block Frequency (MHz) N/A
- Maximum Differential I/O Pairs N/A
- Maximum Distributed RAM Bits N/A
- Maximum I/O Performance 640Mbps
- Maximum Internal Frequency (MHz) 320.1
- Maximum LVDS Data Rate (Mbps) 640
- Maximum MLAB Capacity (Kbit) N/A
- Maximum Number of SERDES Channels N/A
- Maximum Number of User I/Os 65
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time (ns) N/A
- Mega Multiply Accumulates per second N/A
- Number of Global Clocks 8
- Number of I/O Banks 4
- Number of Inter Dielectric Layers N/A
- Number of Multipliers N/A
- Number of Regional Clocks N/A
- Number of Registers N/A
- PCI Blocks N/A
- Process Technology 130nm
- Processor Blocks N/A
- Program Memory Type SRAM
- Programmability No
- RAM Bits (Kbit) 58.5
- Reprogrammability Support No
- Shift Registers Utilize Memory
- Speed Grade 7
- Supplier Temperature Grade Industrial
- Supported IP Core Video LVDS SerDes Transmitter / Receiver|RLDRAM II Controller Core|IFI Advanced CAN IP
- Supported IP Core Manufacture Microtronix Inc/CAST, Inc/Northwest Logic, Inc/IFI
- Temperature Flag Jun
- Tolerant Configuration Interface Voltage (V) 1.5|1.8|2.5|3.3
- Total Number of Block RAM 13
- Tradename Cyclone
- Transceiver Blocks N/A
- Transceiver Speed (Gbps) N/A
- Typical Supply Current (mA) N/A
