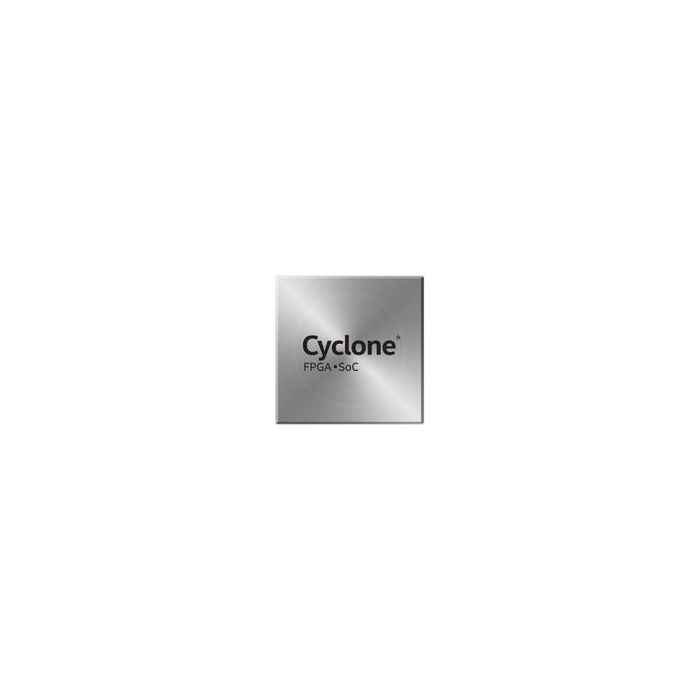

EP1C12Q240C8N

Powiadom mnie gdy produkt będzie dostępny

Więcej informacji
Do pobrania	Download
Main description	FPGA Cyclone® Family 12060 Cells 275.03MHz 130nm Technology 1.5V 240-Pin PQFP

PARAMETRY PRODUKTU

FPGA Cyclone® Family 12060 Cells 275.03MHz 130nm Technology 1.5V 240-Pin PQFP

Informacje podstawowe

ProducentIntel
EURoHSYes (2011/65/EU, 2015/863)
Automotive No

Informacje dodatkowe

Crosses 90
Inventory 2
PCNs 50
GIDEP-Alerts 1
MaskPart EP1C12Q240C8N%
IntroductionDate Feb 22, 2005

Parametry

Copy Protection Yes
Dedicated DSP N/A
Device Logic Cells 12060
Device Logic Gates N/A
Device Logic Units 12060
Device Number of DLLs/PLLs 2
Device PCIe Hard IP Blocks N/A
Device System Gates N/A
Differential I/O Standards Supported LVDS|PCI
Digital Control Impedance No
Ethernet MACs N/A
External Memory Interface DDR SDRAM|FCRAM
Family Name Cyclone®
Giga Multiply Accumulates per Second N/A
I/O Voltage (V) 1.5|1.8|2.5|3.3
In-System Programmability Yes
Maximum DSP Block Frequency (MHz) N/A
Maximum Differential I/O Pairs N/A
Maximum Distributed RAM Bits N/A
Maximum I/O Performance 640Mbps
Maximum Internal Frequency (MHz) 275.03
Maximum LVDS Data Rate (Mbps) 640
Maximum MLAB Capacity (Kbit) N/A
Maximum Number of SERDES Channels N/A
Maximum Number of User I/Os 173
Maximum Operating Supply Voltage (V) 1.575
Maximum Operating Temperature (°C) 85
Maximum Power Dissipation (mW) N/A
Maximum Propagation Delay Time (ns) N/A
Mega Multiply Accumulates per second N/A
Minimum Operating Supply Voltage (V) 1.425
Minimum Operating Temperature (°C) 0
Number of Global Clocks 8
Number of I/O Banks 4
Number of Inter Dielectric Layers N/A
Number of Multipliers N/A
Number of Regional Clocks N/A
Number of Registers N/A
PCI Blocks N/A
Process Technology 130nm
Processor Blocks N/A
Program Memory Type SRAM
Programmability No
RAM Bits (Kbit) 234
Reprogrammability Support No
Shift Registers Utilize Memory
Single-Ended I/O Standards Supported LVTTL|LVCMOS|SSTL-2|SSTL-3
Speed Grade 8
Supplier Temperature Grade Commercial
Supported IP Core Video LVDS SerDes Transmitter / Receiver|RLDRAM II Controller Core|IFI Advanced CAN IP
Supported IP Core Manufacture Microtronix Inc/CAST, Inc/Northwest Logic, Inc/IFI
Temperature Flag Jun
Tolerant Configuration Interface Voltage (V) 1.5|1.8|2.5|3.3
Total Number of Block RAM 52
Tradename Cyclone
Transceiver Blocks N/A
Transceiver Speed (Gbps) N/A
Typical Operating Supply Voltage (V) 1.5
Typical Supply Current (mA) N/A
