DG419AK/883B
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Single SPDT 8-Pin CDIP N |

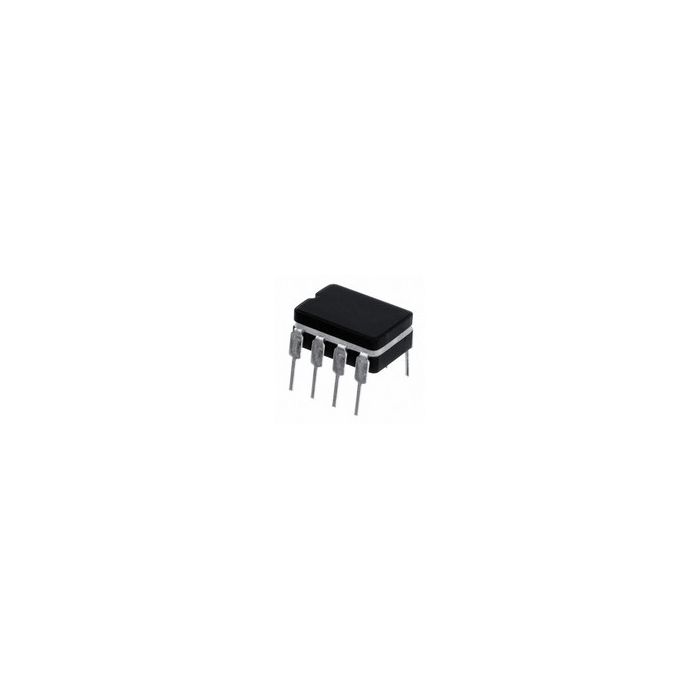

Analog Switch Single SPDT 8-Pin CDIP N
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSNo (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 37
- Inventory 1
- PCNs 9
- GIDEP-Alerts 1
- MaskPart DG419AK883B%
- IntroductionDate Feb 18, 2000
Parametry
- Chip Enable Signals Yes
- Configuration Single SPDT
- Function General
- Input Signal Type Single
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±20
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 30
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 35@±13.5V
- Maximum On Resistance Range (Ohm) 35 to 45
- Maximum Power Dissipation (mW) 640
- Maximum Propagation Delay Bus to Bus (ns) 175@±10V
- Maximum Single Supply Voltage (V) 30
- Maximum Supply Current (mA) ±0.001@±16.5V
- Maximum Turn-Off Time (ns) N/A
- Maximum Turn-On Time (ns) N/A
- Minimum Dual Supply Voltage (V) ±4.5
- Minimum Single Supply Voltage (V) 10
- Multiplexer Architecture N/R
- Number of Channels per Chip 1
- Number of Inputs per Chip 1
- Number of Outputs per Chip 2
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) 35
- Special Features Break-Before-Make
- Supplier Temperature Grade Military
- Switch Architecture SPDT
- Switch Control Logic Active Low/High
- Switch Normal Position NO/NC
- Type Analog Switch
- Typical Dual Supply Voltage (V) ±5|±9|±12|±15|±18
- Typical Single Supply Voltage (V) 12|15|18|24|28
- Typical Supply Current (mA) N/A
