DG412DY-T1-E3
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Quad SPST 16-Pin SOIC N T/R |

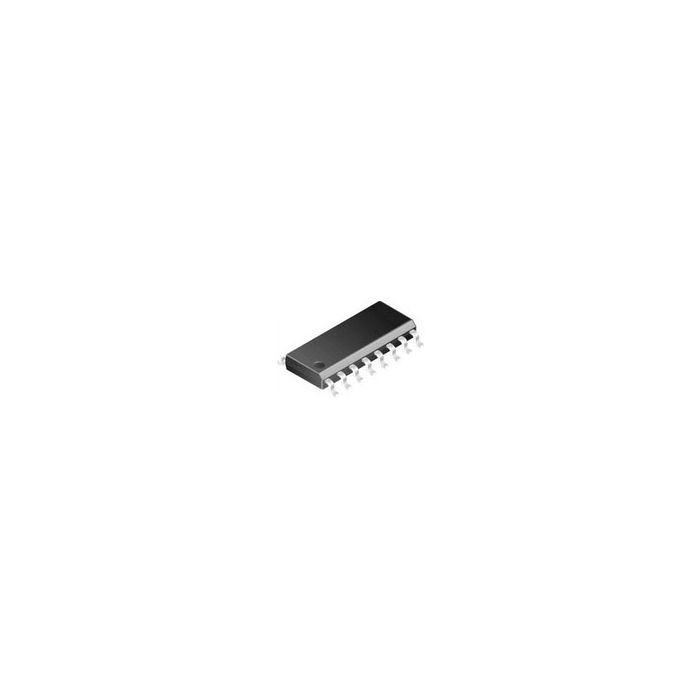

Analog Switch Quad SPST 16-Pin SOIC N T/R
Informacje podstawowe
- ProducentVishay
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 205
- Inventory 5
- PCNs 31
- GIDEP-Alerts 2
- MaskPart DG412DY%E3
- IntroductionDate Jul 28, 1997
Parametry
- Chip Enable Signals Yes
- Configuration Quad SPST
- Function General
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±22
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) 30
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 80@10.8V
- Maximum On Resistance Range (Ohm) 80 to 100
- Maximum Power Dissipation (mW) 600
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) 36
- Maximum Supply Current (mA) ±0.001@±16.5V
- Maximum Turn-Off Time (ns) 145@±15V
- Maximum Turn-On Time (ns) 250@12V
- Minimum Dual Supply Voltage (V) ±7
- Minimum Single Supply Voltage (V) 13
- Multiplexer Architecture N/R
- Number of Channels per Chip 4
- Number of Inputs per Chip 4
- Number of Outputs per Chip 4
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features Level Shifting
- Supplier Temperature Grade N/A
- Switch Architecture SPST
- Switch Control Logic Active High
- Switch Normal Position NO
- Type Analog Switch
- Typical Dual Supply Voltage (V) ±9|±12|±15|±18
- Typical Single Supply Voltage (V) 15|18|24|28
- Typical Supply Current (mA) ±0.0000001@±16.5V
