CY7C64356-48LTXC
| Do pobrania | Download |
|---|---|
| Main description | SOC CY7Cxxx M8C 48-Pin QFN EP Tray |

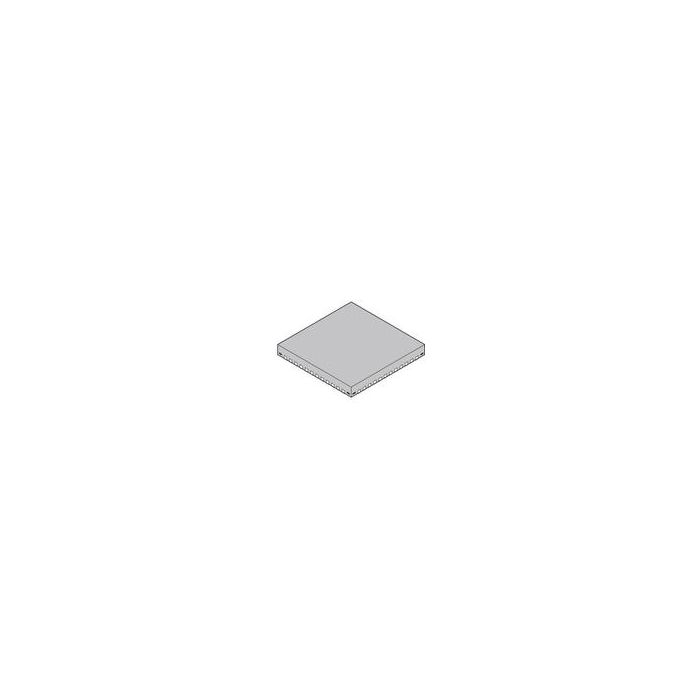

SOC CY7Cxxx M8C 48-Pin QFN EP Tray
Informacje podstawowe
- ProducentCypress Semiconductor
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 1
- Inventory 2
- PCNs 35
- GIDEP-Alerts 4
- FoundINBOMs 1
- MaskPart CY7C6435648LTXC%
- IntroductionDate Mar 25, 2004
- EnablingEnergyEfficiency No
- SupplierUrl http://www.cypress.com/?app=search&searchType=part&keywords=CY7C64356-48LTXC
Parametry
- ADC Channels N/A
- ADC Resolution (bit) 10
- Application N/A
- CAN 0
- Core Architecture M8C
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) N/A
- Data Memory Size N/A
- Device Core M8C
- Ethernet 0
- Ethernet Interface Type N/A
- Ethernet Speed N/A
- External Memory Interface N/A
- External Memory Speed N/A
- Family Name CY7Cxxx
- I2C 0
- I2S 0
- ISM Band N/A
- Interface Type SPI/UART
- Maximum Clock Rate (MHz) 24
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Speed (MHz) 24
- Maximum Storage Temperature (°C) 125
- Minimum Storage Temperature (°C) -55
- Number of ADCs Single
- Number of DACs N/A
- Number of Programmable I/Os 36
- Number of Timers 3
- PWM N/A
- Process Technology N/A
- Processing Unit Microprocessor
- Program Memory Size 8KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 2KB
- SPI 1
- Solutions N/A
- Supplier Temperature Grade Commercial
- Temperature Flag Opr
- Type Applications Processor
- UART 4
- USART 0
- USB 0
- Watchdog 1
