CY7C64355-48LTXC

Więcej informacji
Do pobrania Download

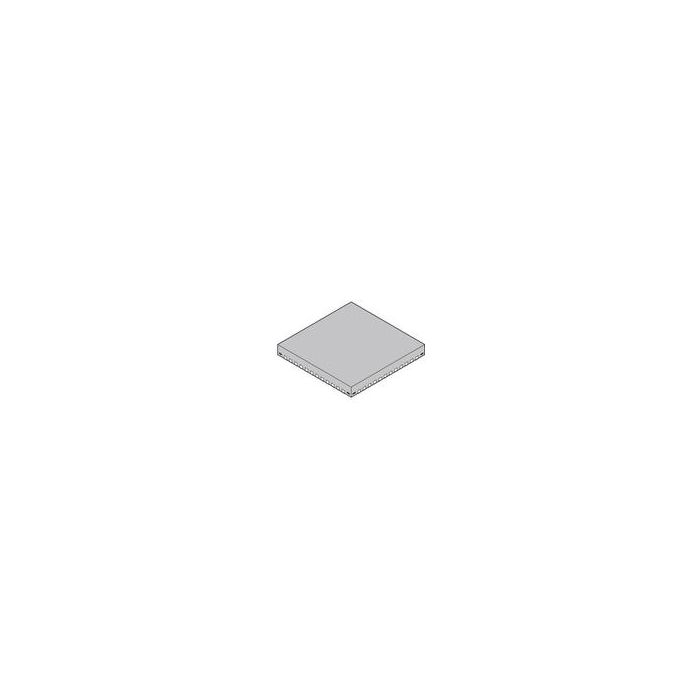

Main description SOC CY7Cxxx M8C 48-Pin QFN EP Tray
SOC CY7Cxxx M8C 48-Pin QFN EP Tray

Informacje podstawowe

  • ProducentCypress Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1
  • Inventory 4
  • PCNs 35
  • GIDEP-Alerts 4
  • FoundINBOMs 1
  • MaskPart CY7C6435548LTXC%
  • IntroductionDate Mar 25, 2004
  • EnablingEnergyEfficiency No
  • SupplierUrl http://www.cypress.com/?app=search&searchType=part&keywords=CY7C64355-48LTXC

Parametry

  • ADC Channels N/A
  • ADC Resolution (bit) 10
  • Application N/A
  • CAN 0
  • Core Architecture M8C
  • DAC Channels N/A
  • DAC Resolution (bit) N/A
  • Data Bus Width (bit) N/A
  • Data Memory Size N/A
  • Device Core M8C
  • Ethernet 0
  • Ethernet Interface Type N/A
  • Ethernet Speed N/A
  • External Memory Interface N/A
  • External Memory Speed N/A
  • Family Name CY7Cxxx
  • I2C 0
  • I2S 0
  • ISM Band N/A
  • Interface Type SPI/UART
  • Maximum Clock Rate (MHz) 24
  • Maximum Expanded Memory Size N/A
  • Maximum Operating Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (mW) N/A
  • Maximum Speed (MHz) 24
  • Maximum Storage Temperature (°C) 125
  • Minimum Operating Supply Voltage (V) 1.71
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -55
  • Number of ADCs Single
  • Number of DACs N/A
  • Number of Programmable I/Os 36
  • Number of Timers 3
  • PWM N/A
  • Process Technology N/A
  • Processing Unit Microprocessor
  • Program Memory Size 32KB
  • Program Memory Type Flash
  • Programmability Yes
  • RAM Size 1KB
  • SPI 1
  • Solutions N/A
  • Supplier Temperature Grade Commercial
  • Temperature Flag Opr
  • Type Applications Processor
  • Typical Operating Supply Voltage (V) 2.5|3.3|5
  • UART 4
  • USART 0
  • USB 0
  • Watchdog 1
