BTA24-800CWRG
| Do pobrania | Download |
|---|---|

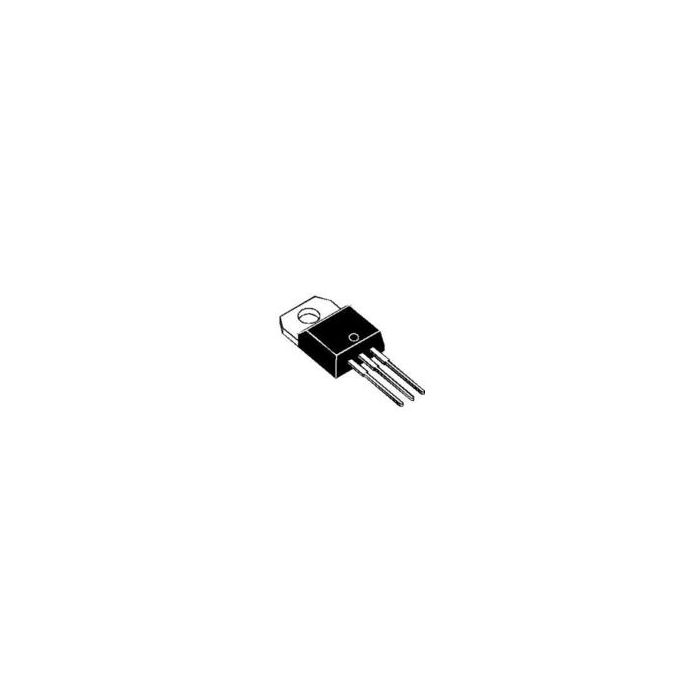

| Main description | TRIAC 800V 25A(RMS) 260A 3-Pin(3+Tab) TO-220AB Insulated Tube |
TRIAC 800V 25A(RMS) 260A 3-Pin(3+Tab) TO-220AB Insulated Tube
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes with Exemption (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 32
- Inventory 6
- PCNs 21
- MaskPart BTA24800CW%
- IntroductionDate Dec 06, 2000
Parametry
- AC Switch No
- Average Gate Power Dissipation (W) 1
- Circuit Fusing Consideration (A²S) 340
- Maximum Gate Trigger Current (mA) 35
- Maximum Gate Trigger Voltage (V) 1.3
- Maximum Holding Current (mA) 50
- Maximum Latching Current (mA) N/A
- Maximum Rate of Rise of Off-State Voltage (V/us) 500(Min)
- Maximum Rate of Rise of On-State Current (A/us) 50
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -40
- Peak Gate Power Dissipation (W) N/A
- Peak On-State Voltage (V) 1.55@35A
- RMS On-State Current (A) 25
- Rated Average On-State Current (A) N/A
- Repetitive Peak Forward Blocking Voltage (V) 800
- Repetitive Peak Off-State Current (mA) 0.005
- Repetitive Peak Reverse Voltage (V) 800
- Supplier Temperature Grade N/A
- Surge Current Rating (A) 260
- Tradename Snubberless™
