BCX56-16-TP-HF
| Do pobrania | Download |
|---|---|

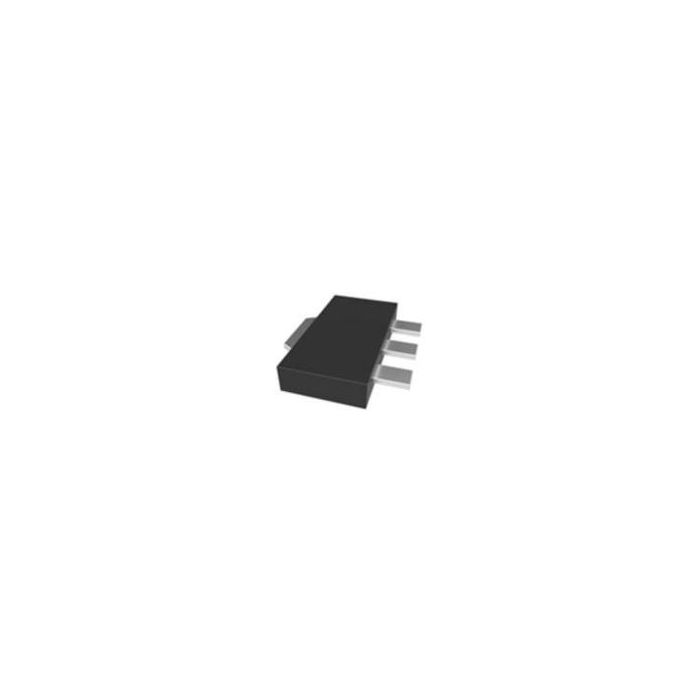

| Main description | Trans GP BJT NPN 80V 1A 4-Pin(3+Tab) SOT-89 T/R |
Trans GP BJT NPN 80V 1A 4-Pin(3+Tab) SOT-89 T/R
Informacje podstawowe
- ProducentMicro Commercial Components
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 104
- MaskPart BCX5616%HF
Parametry
- Category Bipolar Power
- Configuration Single Dual Collector
- Material N/A
- Maximum 3rd Order Intercept Point (dBm) N/R
- Maximum Base Emitter Saturation Voltage (V) 1@500mA
- Maximum Collector Base Voltage (V) 100
- Maximum Collector Cut-Off Current (nA) 100
- Maximum Collector-Emitter Saturation Voltage (V) 0.5@50mA@500mA
- Maximum Collector-Emitter Voltage (V) 80
- Maximum DC Collector Current (A) 1
- Maximum Delay Time (ns) N/A
- Maximum Emitter Base Voltage (V) 5
- Maximum Emitter Cut-Off Current (nA) 100
- Maximum Fall Time (ns) N/A
- Maximum Junction Ambient Thermal Resistance N/A
- Maximum Junction Case Thermal Resistance N/A
- Maximum Noise Figure (dB) N/A
- Maximum Power 1dB Compression (dBm) N/R
- Maximum Power Dissipation (mW) 500
- Maximum Rise Time (ns) N/A
- Maximum Storage Temperature (°C) 150
- Maximum Storage Time (ns) N/A
- Maximum Transition Frequency (MHz) 130(Min)
- Maximum Turn-Off Time (ns) N/A
- Maximum Turn-On Time (ns) N/A
- Minimum DC Current Gain 100@150mA@2V
- Minimum Storage Temperature (°C) -55
- Number of Elements per Chip 1
- Operational Bias Conditions N/R
- Output Power (W) N/R
- Supplier Temperature Grade N/A
- Type NPN
- Typical Input Capacitance (pF) N/A
- Typical Output Capacitance (pF) N/A
- Typical Power Gain (dB) N/R
