BC557G-B-T92-K

Więcej informacji
Do pobrania	Download

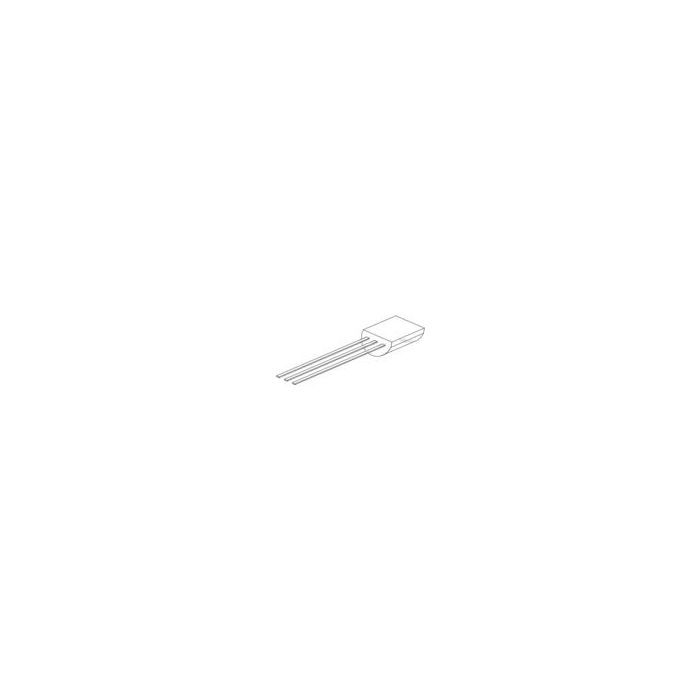

Main description	Trans GP BJT PNP 45V 0.1A 625mW 3-Pin TO-92 Bulk

Trans GP BJT PNP 45V 0.1A 625mW 3-Pin TO-92 Bulk

Informacje podstawowe

Category Bipolar Small Signal
Configuration Single
Material Si
Maximum 3rd Order Intercept Point (dBm) N/R
Maximum Base Emitter Saturation Voltage (V) 0.7(Typ)@0.5mA@10mA|0.9(Typ)@5mA@100mA
Maximum Collector Base Voltage (V) 50
Maximum Collector Cut-Off Current (nA) 15
Maximum Collector-Emitter Saturation Voltage (V) 0.3@0.5mA@10mA|0.65@5mA@100mA
Maximum Collector-Emitter Voltage (V) 45
Maximum DC Collector Current (A) 0.1
Maximum Delay Time (ns) N/A
Maximum Emitter Base Voltage (V) 5
Maximum Emitter Cut-Off Current (nA) N/A
Maximum Fall Time (ns) N/A
Maximum Junction Ambient Thermal Resistance 200°C/W
Maximum Junction Case Thermal Resistance 83.3°C/W
Maximum Noise Figure (dB) 10
Maximum Operating Temperature (°C) 150
Maximum Power 1dB Compression (dBm) N/R
Maximum Power Dissipation (mW) 625
Maximum Rise Time (ns) N/A
Maximum Storage Temperature (°C) 150
Maximum Storage Time (ns) N/A
Maximum Transition Frequency (MHz) 150(Typ)
Maximum Turn-Off Time (ns) N/A
Maximum Turn-On Time (ns) N/A
Minimum DC Current Gain 200@2mA@5V
Minimum Operating Temperature (°C) -55
Minimum Storage Temperature (°C) -55
Number of Elements per Chip 1
Operational Bias Conditions N/R
Output Power (W) N/R
Supplier Temperature Grade N/A
Type PNP
Typical Input Capacitance (pF) N/A
Typical Output Capacitance (pF) 6(Max)
Typical Power Gain (dB) N/R
