AZV321KTR-E1
| Do pobrania | Download |
|---|---|
| Main description | Op Amp Single Low Voltage Amplifier R-R O/P 5.5V 5-Pin SOT-23 T/R |

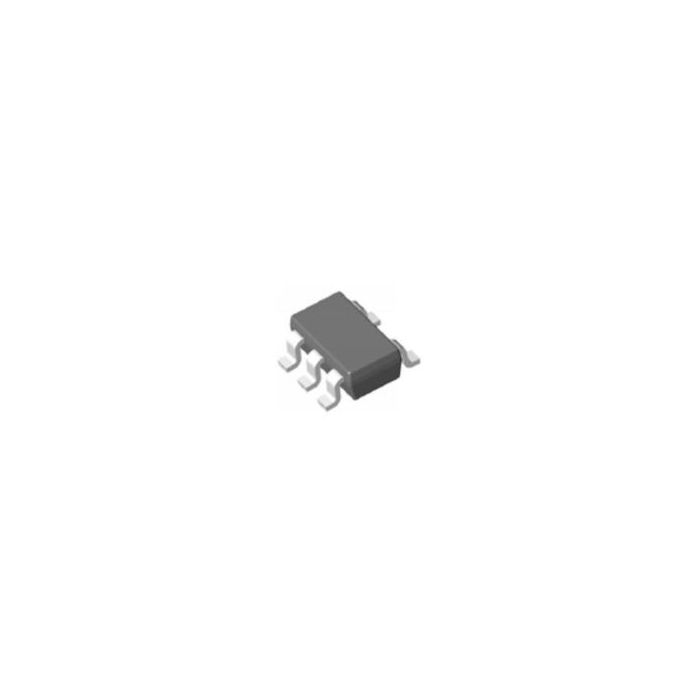

Op Amp Single Low Voltage Amplifier R-R O/P 5.5V 5-Pin SOT-23 T/R
Informacje podstawowe
- ProducentDiodes Incorporated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 1572
- PCNs 17
- GIDEP-Alerts 1
- MaskPart AZV321K%E1
- IntroductionDate Aug 12, 2008
Parametry
- Manufacturer Type Low Voltage Amplifier
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) 0.25@5V
- Maximum Input Offset Current (uA) 0.05@5V
- Maximum Input Offset Voltage (mV) 7@5V
- Maximum Power Dissipation (mW) N/A
- Maximum Single Supply Voltage (V) 5.5
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) 0.25@5V
- Maximum Supply Voltage Range (V) 5.5 to 6
- Minimum CMRR (dB) 50
- Minimum CMRR Range (dB) 50 to 60
- Minimum Dual Supply Voltage (V) N/R
- Minimum PSRR (dB) 50
- Minimum Single Supply Voltage (V) 2.7
- Minimum Storage Temperature (°C) -65
- Number of Channels per Chip 1
- Output Type N/A
- Power Supply Type Single
- Process Technology BiCMOS
- Rail to Rail Rail to Rail Output
- Shut Down Support No
- Supplier Temperature Grade N/A
- Type Low Voltage Amplifier
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) 1
- Typical Input Noise Voltage Density (nV/rtHz) N/A
- Typical Inverting Input Current Noise Density (pA/rtHz) N/A
- Typical Noninverting Input Current Noise Density (pA/rtHz) N/A
- Typical Output Current (mA) N/A
- Typical Settling Time (ns) N/A
- Typical Single Supply Voltage (V) 3|5
- Typical Slew Rate (V/us) 1@5V
- Typical Voltage Gain (dB) 100
