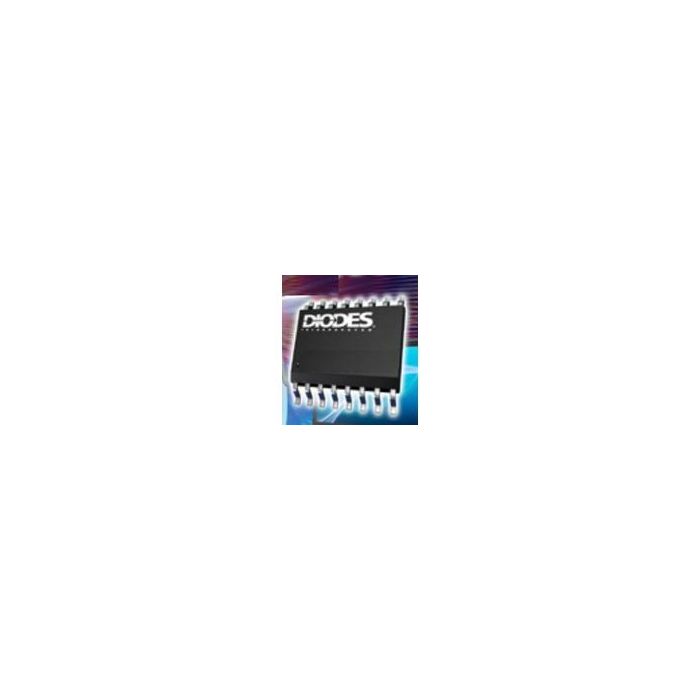

AZ7500CMTR-EA

Więcej informacji
Do pobrania Download
Main description Voltage Mode PWM Controller 40V 250mA 1kHz to 200kHz 16-Pin SOIC
Voltage Mode PWM Controller 40V 250mA 1kHz to 200kHz 16-Pin SOIC

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 29
  • PCNs 15
  • MaskPart AZ7500CM%EA

Parametry

  • Adjustable Output No
  • Control Method Voltage Mode PWM Controller
  • Fall Time (ns) 25
  • Maximum Duty Cycle (%) 45(Min)
  • Maximum Operating Supply Voltage (V) 36
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Supply Current (mA) 10
  • Minimum Operating Supply Voltage (V) 7
  • Minimum Operating Temperature (°C) -40
  • Number of PWM Outputs 1
  • On/Off Pin No
  • Operating Supply Voltage (V) 15
  • Output Current (mA) 250(Max)
  • Output Voltage (V) 40
  • Rise Time (ns) 100
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 1 to 200
  • Synchronous Pin No
  • Topology Push-Pull
  • Type Voltage Mode PWM Controller
  • Typical Operating Supply Voltage (V) 15
